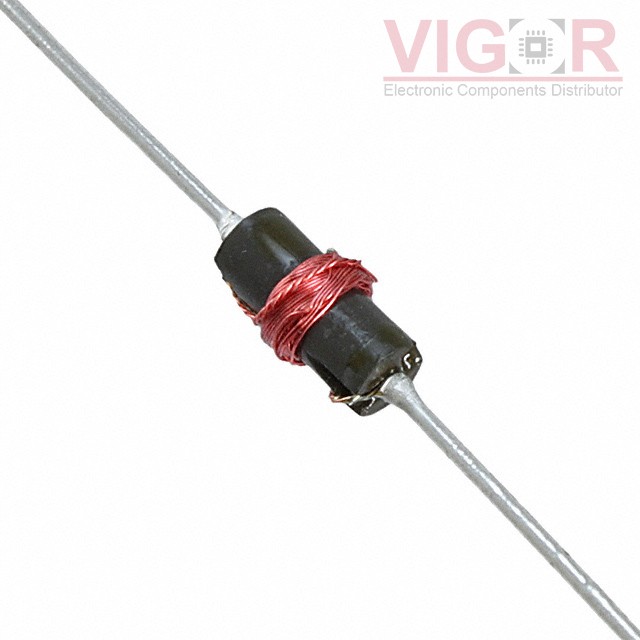

70F155AI-RC

Part No :: 70F155AI-RC

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 4447918

Description: FIXED IND 15UH 250MA 1.92 OHM TH

Catalog: Fixed Inductors

DataSheet: 70F155AI-RC PDF

Country of origin: -

Date code: -

70F155AI-RC Specifications

Type	Description
Series:	70F
Package:	Bulk
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Iron
Inductance:	15 µH
Tolerance:	±10%
Current Rating (Amps):	250 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.92Ohm Max
Q @ Freq:	52 @ 2.5MHz
Frequency - Self Resonant:	16MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	2.5 MHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Axial
Supplier Device Package:	-
Size / Dimension:	0.160" Dia x 0.250" L (4.06mm x 6.35mm)
Height - Seated (Max):	-
