760308102207

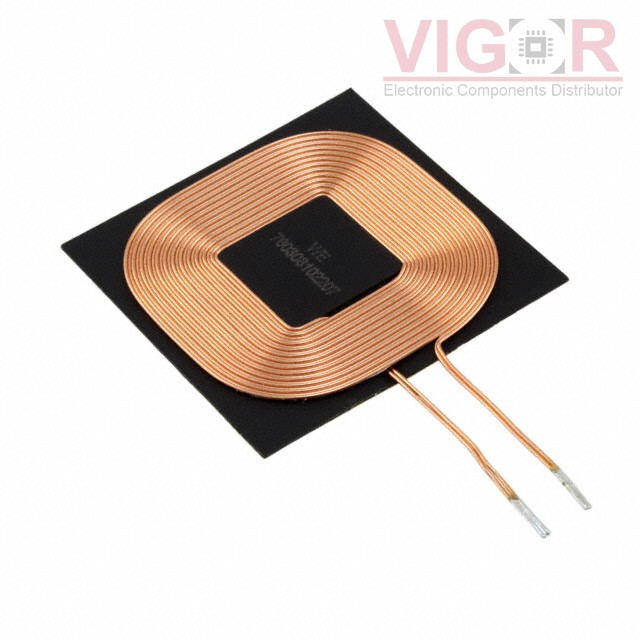

Image is for reference,
please contact us to get the real picture

Part No :: 760308102207

Manufacturer: Würth Elektronik Midcom

Description: RX 1 COIL 1 LYR BIFILAR 8UH 5A

Catalog: Wireless Charging Coils

DataSheet: 760308102207 PDF

Availability: 1796 pieces

Unit Price: ~~$9.86000~~

Current price of 760308102207 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760308102207 Specifications

Type	Description
Series:	WE-WPCC
Package:	Box
Part Status:	Active
Function:	Receiver
Type:	1 Coil, 1 Layer, Bifilar
Inductance:	8µH
Tolerance:	±10%
DC Resistance (DCR):	60mOhm
Q @ Freq:	30 @ 125kHz
Current Rating (Amps):	5A
Current - Saturation (Isat):	10A
Frequency - Self Resonant:	16MHz
Operating Temperature:	-20°C ~ 105°C
Size / Dimension:	1.57" L x 1.57" W x 0.05" H (40mm x 40mm x 1.2mm)

Please confirm the specifications of the products when ordering.
