760308101106

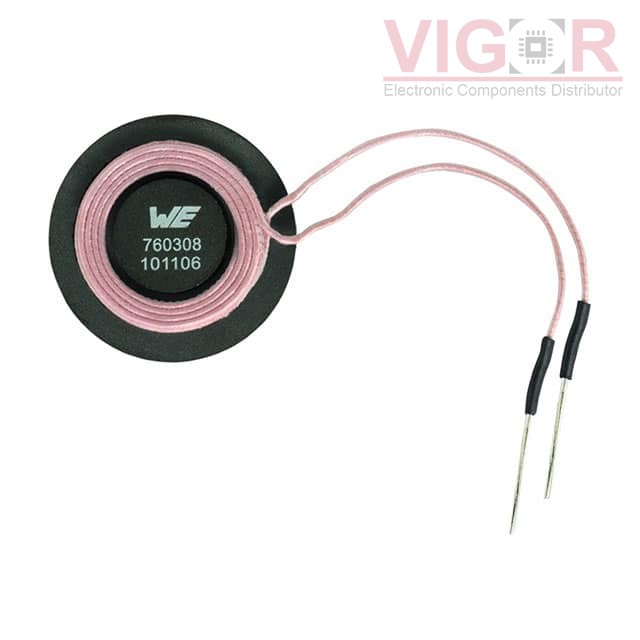

Image is for reference,
please contact us to get the real picture

Part No :: 760308101106

Manufacturer: Würth Elektronik Midcom

Description: WE-WPCC WIRELESS POWER CHARGING

Catalog: Wireless Charging Coils

DataSheet: 760308101106 PDF

Availability: 44 pieces

Unit Price: ~~$9.65000~~

Current price of 760308101106 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760308101106 Specifications

Type	Description
Series:	WE-WPCC
Package:	Tray
Part Status:	Active
Function:	Transmitter
Type:	1 Coil, 1 Layer
Inductance:	2.5µH
Tolerance:	±10%
DC Resistance (DCR):	90mOhm
Q @ Freq:	30 @ 125kHz
Current Rating (Amps):	2.5A
Current - Saturation (Isat):	8A
Frequency - Self Resonant:	38MHz
Operating Temperature:	-20°C ~ 105°C
Size / Dimension:	0.807" Dia x 0.110" H (20.50mm x 2.80mm)

Please confirm the specifications of the products when ordering.
