WT-505060-20K2-A10-G

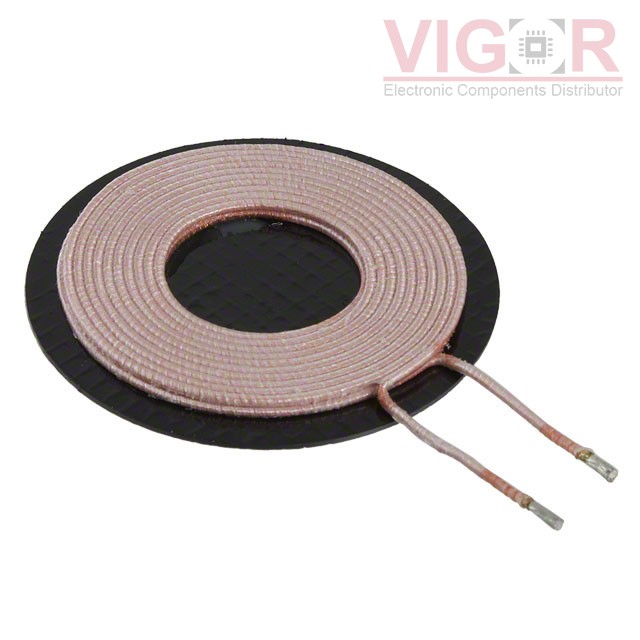

Image is for reference,
please contact us to get the real picture

Part No :: WT-505060-20K2-A10-G

Manufacturer: TDK Corporation

Description: TX 1 COIL 2 LYR 24UH

Catalog: Wireless Charging Coils

DataSheet: WT-505060-20K2-A10-G PDF

Availability: 8 pieces

Unit Price: ~~$13.12000~~

Current price of WT-505060-20K2-A10-G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

WT-505060-20K2-A10-G Specifications

Type	Description
Series:	WT
Package:	Tray
Part Status:	Not For New Designs
Function:	Transmitter
Type:	1 Coil, 2 Layer
Inductance:	24µH
Tolerance:	±10%
DC Resistance (DCR):	100mOhm Max
Q @ Freq:	80 @ 100kHz
Current Rating (Amps):	-
Current - Saturation (Isat):	-
Frequency - Self Resonant:	-
Operating Temperature:	-30°C ~ 70°C
Size / Dimension:	1.97" Dia x 0.13" H (50.0mm x 3.4mm)

Please confirm the specifications of the products when ordering.
