760308105309

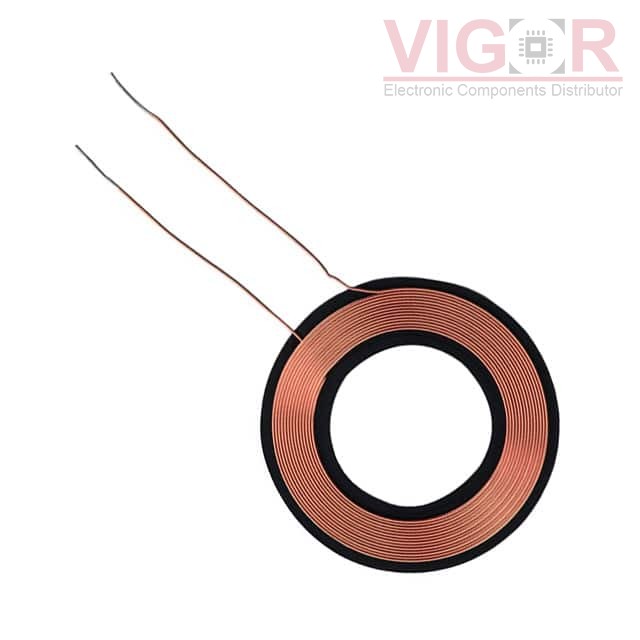

Image is for reference,
please contact us to get the real picture

Part No :: 760308105309

Manufacturer: Würth Elektronik Midcom

Description: WE-WPCC WIRELESS POWER CHARGING

Catalog: Wireless Charging Coils

DataSheet: 760308105309 PDF

Availability: 92 pieces

Unit Price: ~~$9.50000~~

Current price of 760308105309 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

760308105309 Specifications

Type	Description
Series:	WE-WPCC
Package:	Tray
Part Status:	Active
Function:	Receiver
Type:	1 Coil, 1 Layer
Inductance:	10.5µH
Tolerance:	±10%
DC Resistance (DCR):	450mOhm
Q @ Freq:	19 @ 125kHz
Current Rating (Amps):	1.5A
Current - Saturation (Isat):	3A
Frequency - Self Resonant:	18.5MHz
Operating Temperature:	-20°C ~ 105°C
Size / Dimension:	1.035" Dia x 0.019" H (26.30mm x 0.49mm)
