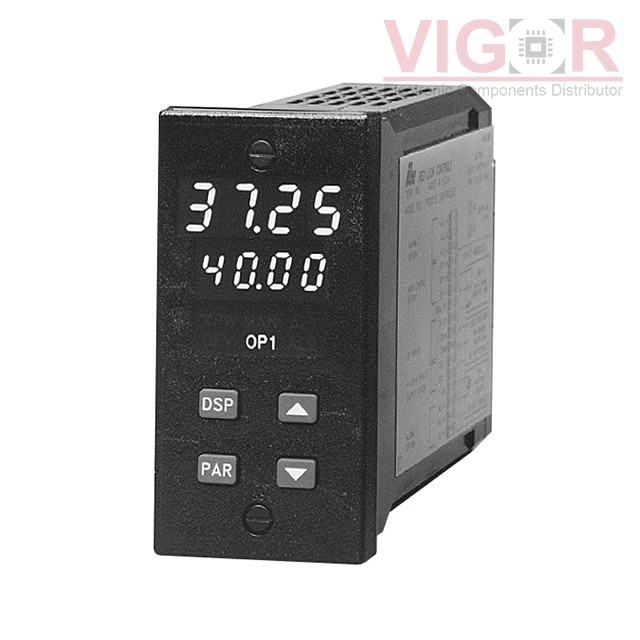

TCU12306

Part No :: TCU12306

Manufacturer: Red Lion

VIGOR # :: 4963587

Description: CONTROL TEMP ANALOG OUT 115/230V

Catalog: Controllers - Process, Temperature

DataSheet: TCU12306 PDF

Country of origin: -

Date code: -

TCU12306 Specifications

Type	Description
Series:	TCU
Package:	Box
Part Status:	Obsolete
Type:	Temperature Controller (RTD, Type B, E, J, K, N, R, S, T)
Input Range:	-200°C ~ 1820°C, -5 ~ 56mV
Output Type:	Analog (2), Option Cards Available
Control Method:	On/Off, Proportional (PID)
Communications:	-
Number of Characters Per Row:	4, 4
Display Type:	LED - Dual Color Characters
Display Characters - Height:	0.401" (10.20mm), 0.299" (7.60mm)
Voltage - Supply:	115/230VAC
Panel Cutout Dimensions:	Rectangular - 92.00mm x 45.00mm
Mounting Type:	Panel Mount
Termination Style:	Screw Terminal
Ingress Protection:	IP65 - Dust Tight, Water Resistant
Features:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Feb 08 - Feb 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of TCU12306 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

P4810111

CONTROL PROC 24V 18-36V PANEL MT

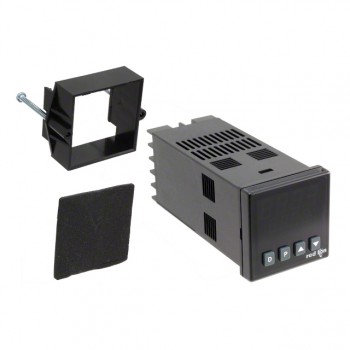

T4810107

CONTROL TEMP 85-250V PANEL MOUNT

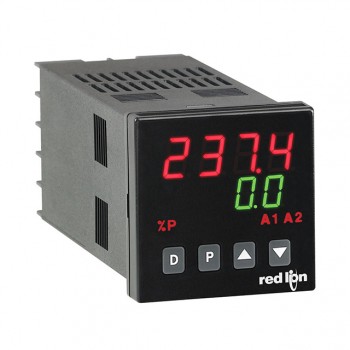

P4810107
