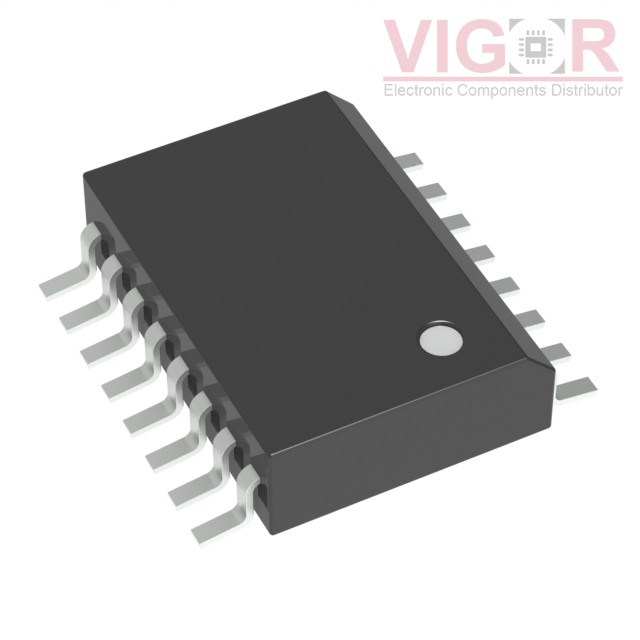

MC14046BDWR2G

Part No :: MC14046BDWR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3871932

Description: IC PHASE LOCK LOOP CMOS 16SOIC

Catalog: Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers

DataSheet: MC14046BDWR2G PDF

Country of origin: -

Date code: -

MC14046BDWR2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Phase Lock Loop (PLL)
PLL:	Yes
Input:	CMOS
Output:	CMOS
Number of Circuits:	1
Ratio - Input:Output:	2:2
Differential - Input:Output:	No/No
Frequency - Max:	1.9MHz
Divider/Multiplier:	No/No
Voltage - Supply:	3V ~ 18V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SOIC
