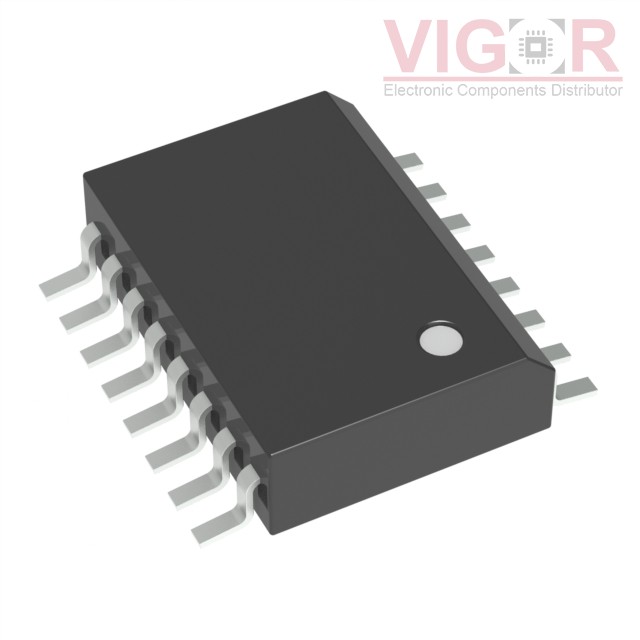

MC14536BDWG

Part No :: MC14536BDWG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3687457

Description: IC OSC PROG TIMER 2MHZ 16SOIC

Catalog: Clock/Timing - Programmable Timers and Oscillators

DataSheet: MC14536BDWG PDF

Country of origin: -

Date code: -

MC14536BDWG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Type:	Programmable Timer
Count:	-
Frequency:	2MHz
Voltage - Supply:	3V ~ 18V
Current - Supply:	15 µA
Operating Temperature:	-55°C ~ 125°C
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SOIC
Mounting Type:	Surface Mount
