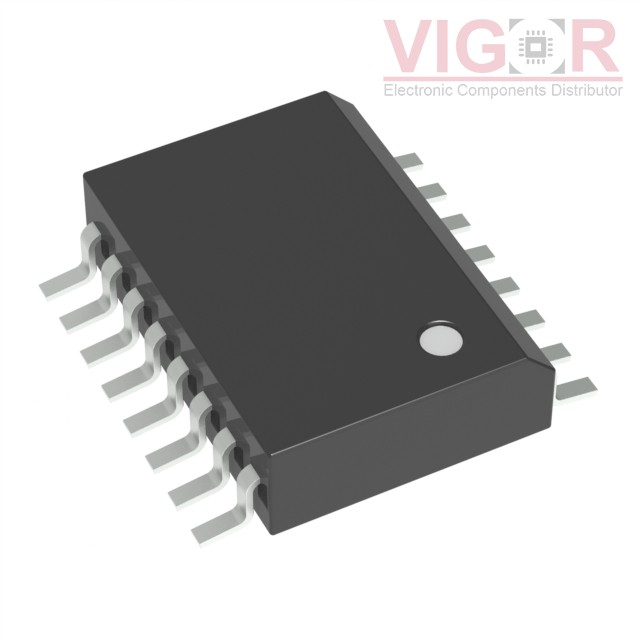

MC14536BDWR2G

Part No :: MC14536BDWR2G

Manufacturer: VIGOR

VIGOR # :: 3688163

Description: PROGRAMMABLE TIMER, 1 TIMER(S),

Catalog: Clock/Timing - Programmable Timers and Oscillators

DataSheet: MC14536BDWR2G PDF

Country of origin: -

Date code: -

MC14536BDWR2G Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Programmable Timer
Count:	-
Frequency:	2MHz
Voltage - Supply:	3V ~ 18V
Current - Supply:	15 µA
Operating Temperature:	-55°C ~ 125°C
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SOIC
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
TLC556MDG4 Match 93%	VIGOR DUAL TIMER, LINCMOS- TTL AND CMO	MC14536BDWR2G vs TLC556MDG4
TLC556MD Match 93%	Texas Instruments IC OSC TIMER DUAL 2.1MHZ 14-SOIC	MC14536BDWR2G vs TLC556MD
TLC556MDRG4 Match 93%	Texas Instruments IC OSC TIMER DUAL 2.1MHZ 14-SOIC	MC14536BDWR2G vs TLC556MDRG4
MC14536BDWG Match 100%	Sanyo Semiconductor/ON Semiconductor IC OSC PROG TIMER 2MHZ 16SOIC	MC14536BDWR2G vs MC14536BDWG
NLV14536BDWG Match 100%	VIGOR BINARY COUNTER, 4000/14000/40000	MC14536BDWR2G vs NLV14536BDWG
MC14536BCP Match 100%	VIGOR 4000/14000/40000 SERIES; SYN POS	MC14536BDWR2G vs MC14536BCP
