DS1685EN-5+

Part No :: DS1685EN-5+

Manufacturer: Maxim Integrated

VIGOR # :: 3689507

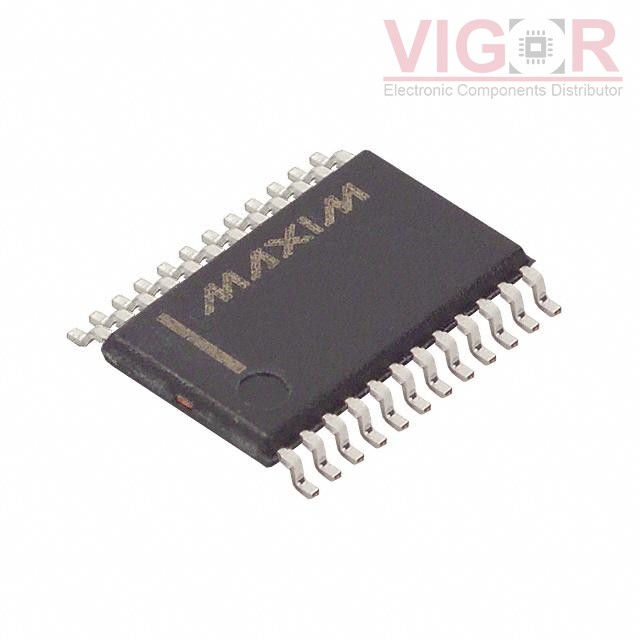

Description: IC RTC CLK/CALENDAR PAR 24-TSSOP

Catalog: Clock/Timing - Real Time Clocks

DataSheet: DS1685EN-5+ PDF

Country of origin: -

Date code: -

DS1685EN-5+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Type:	Clock/Calendar
Features:	Alarm, NVSRAM, Square Wave Output, Y2K
Memory Size:	242B
Time Format:	HH:MM:SS (12/24 hr)
Date Format:	YY-MM-DD-dd
Interface:	Parallel
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Supply, Battery:	2.5V ~ 3.7V
Current - Timekeeping (Max):	3mA @ 5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	24-TSSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
DS1685EN-3+ Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-TSSOP	DS1685EN-5+ vs DS1685EN-3+
DS1685EN-5+T&R Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-TSSOP	DS1685EN-5+ vs DS1685EN-5+T&R
DS1685EN-3+T&R Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-TSSOP	DS1685EN-5+ vs DS1685EN-3+T&R
DS1685EN-5 Match 100%	VIGOR DS1685 5V REAL-TIME CLOCK	DS1685EN-5+ vs DS1685EN-5
DS1685EN-3 Match 100%	Maxim Integrated IC RTC 3V 64BIT Y2KC IND 24TSSOP	DS1685EN-5+ vs DS1685EN-3
DS1685EN-5/T&R Match 100%	Maxim Integrated IC RTC CLK/CALENDAR PAR 24-TSSOP	DS1685EN-5+ vs DS1685EN-5/T&R
