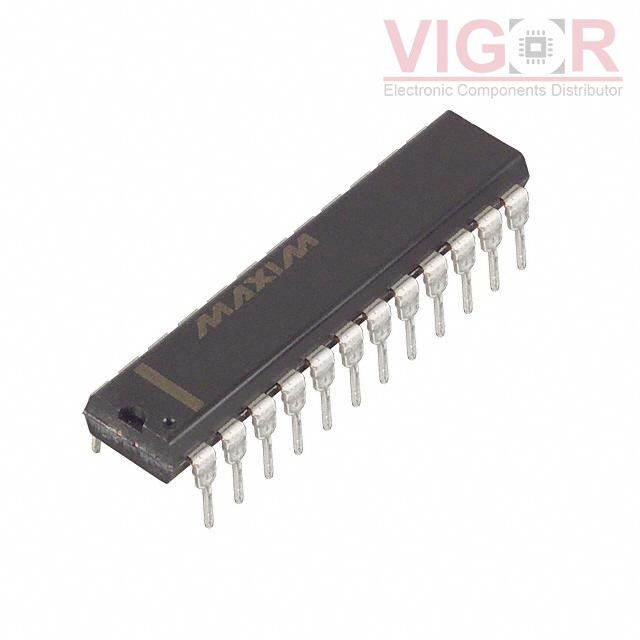

MAX505ACNG+

Part No :: MAX505ACNG+

Manufacturer: Maxim Integrated

VIGOR # :: 3793699

Description: IC DAC 8BIT V-OUT 24DIP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX505ACNG+ PDF

Country of origin: -

Date code: -

MAX505ACNG+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of Bits:	8
Number of D/A Converters:	4
Settling Time:	6µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	-, ±1 (Max)
Architecture:	R-2R
Operating Temperature:	0°C ~ 70°C
Package / Case:	24-DIP (0.300", 7.62mm)
Supplier Device Package:	24-PDIP
Mounting Type:	Through Hole
