MAX505BCNG

Part No :: MAX505BCNG

Manufacturer: Maxim Integrated

VIGOR # :: 4879218

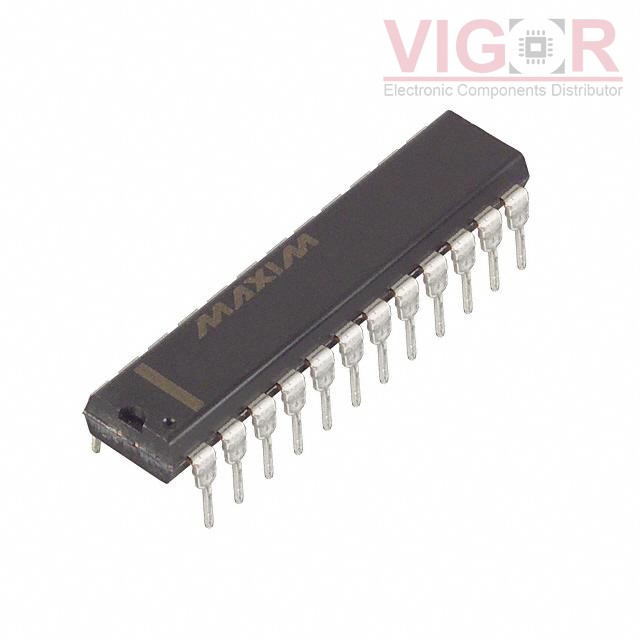

Description: IC DAC 8BIT V-OUT 24DIP

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX505BCNG PDF

Country of origin: -

Date code: -

MAX505BCNG Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	8
Number of D/A Converters:	4
Settling Time:	6µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	Parallel
Reference Type:	External
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	-, ±1 (Max)
Architecture:	R-2R
Operating Temperature:	0°C ~ 70°C
Package / Case:	24-DIP (0.300", 7.62mm)
Supplier Device Package:	24-PDIP
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX505BENG Match 100%	VIGOR 8-BIT DAC	MAX505BCNG vs MAX505BENG
MAX505BENG+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 24DIP	MAX505BCNG vs MAX505BENG+
MAX505ACNG+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 24DIP	MAX505BCNG vs MAX505ACNG+
MAX505BCNG+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 24DIP	MAX505BCNG vs MAX505BCNG+
MAX505ACNG Match 100%	VIGOR 8-BIT DAC	MAX505BCNG vs MAX505ACNG
MAX505AENG Match 100%	VIGOR 8-BIT DAC	MAX505BCNG vs MAX505AENG
