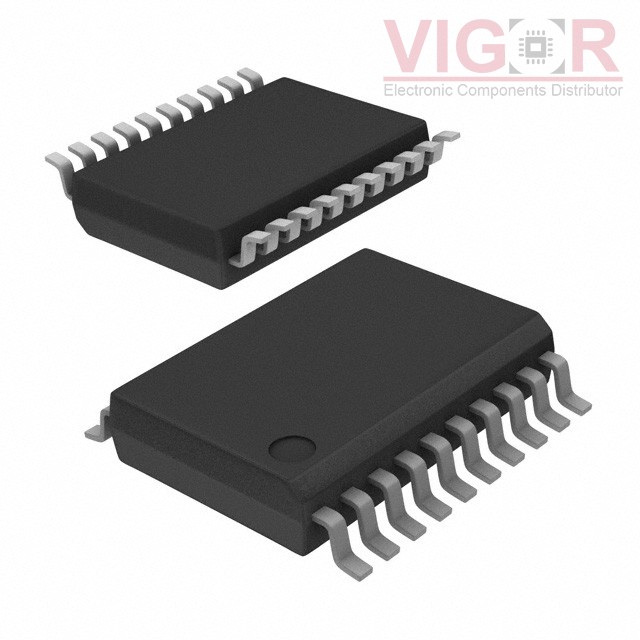

MAX509BCAP

Part No :: MAX509BCAP

Manufacturer: VIGOR

VIGOR # :: 3798194

Description: QUAD, SERIAL 8-BIT DAC

Catalog: Data Acquisition - Digital to Analog Converters (DAC)

DataSheet: MAX509BCAP PDF

Country of origin: -

Date code: -

MAX509BCAP Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Number of Bits:	8
Number of D/A Converters:	4
Settling Time:	6µs (Typ)
Output Type:	Voltage - Buffered
Differential Output:	No
Data Interface:	SPI
Reference Type:	External
Voltage - Supply, Analog:	±5V
Voltage - Supply, Digital:	5V
INL/DNL (LSB):	-, ±1 (Max)
Architecture:	R-2R
Operating Temperature:	0°C ~ 70°C
Package / Case:	20-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	20-SSOP
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX509ACAP+T Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20SSOP	MAX509BCAP vs MAX509ACAP+T
MAX509AEAP+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20SSOP	MAX509BCAP vs MAX509AEAP+
MAX509BEAP+ Match 100%	VIGOR MAX509 QUAD, SERIAL 8-BIT DAC WI	MAX509BCAP vs MAX509BEAP+
MAX509ACAP+ Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20SSOP	MAX509BCAP vs MAX509ACAP+
MAX509AEAP+T Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20SSOP	MAX509BCAP vs MAX509AEAP+T
MAX509BCAP+T Match 100%	Maxim Integrated IC DAC 8BIT V-OUT 20SSOP	MAX509BCAP vs MAX509BCAP+T
