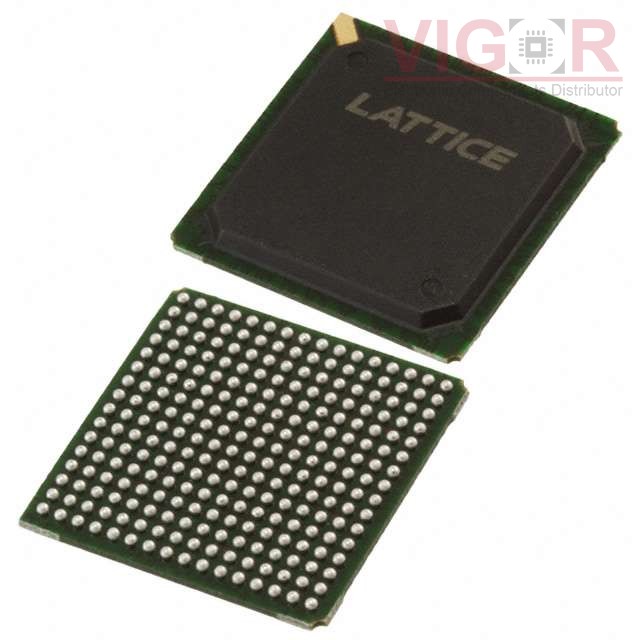

LC4256B-75FN256AC

Part No :: LC4256B-75FN256AC

Manufacturer: Lattice Semiconductor

VIGOR # :: 4855375

Description: IC CPLD 256MC 7.5NS 256FPBG

Catalog: Embedded - CPLDs (Complex Programmable Logic Devices)

DataSheet: LC4256B-75FN256AC PDF

Country of origin: -

Date code: -

LC4256B-75FN256AC Specifications

Type	Description
Series:	ispMACH® 4000B
Package:	Tray
Part Status:	Obsolete
Programmable Type:	In System Programmable
Delay Time tpd(1) Max:	7.5 ns
Voltage Supply - Internal:	2.3V ~ 2.7V
Number of Logic Elements/Blocks:	16
Number of Macrocells:	256
Number of Gates:	-
Number of I/O:	128
Operating Temperature:	0°C ~ 90°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	256-BGA
Supplier Device Package:	256-FPBGA (17x17)

Alternative Products

Part Number	Manufacturer & Description	Compare
LC4256B-75F256AI Match 100%	Lattice Semiconductor IC CPLD 256MC 7.5NS 256FPBG	LC4256B-75FN256AC vs LC4256B-75F256AI
LC4256B-75F256BC Match 84%	Lattice Semiconductor IC CPLD 256MC 7.5NS 256FPBG	LC4256B-75FN256AC vs LC4256B-75F256BC
LC5256MV-75FN256C Match 57%	Lattice Semiconductor IC CPLD 256MC 7.5NS 256FBGA	LC4256B-75FN256AC vs LC5256MV-75FN256C
LC4256B-75FN256BC Match 84%	Lattice Semiconductor IC CPLD 256MC 7.5NS 256FPBG	LC4256B-75FN256AC vs LC4256B-75FN256BC
LC5256MV-75F256I Match 57%	Lattice Semiconductor IC CPLD 256MC 7.5NS 256FBGA	LC4256B-75FN256AC vs LC5256MV-75F256I
LC4256B-75FN256AI Match 100%	Lattice Semiconductor IC CPLD 256MC 7.5NS 256FPBG	LC4256B-75FN256AC vs LC4256B-75FN256AI
