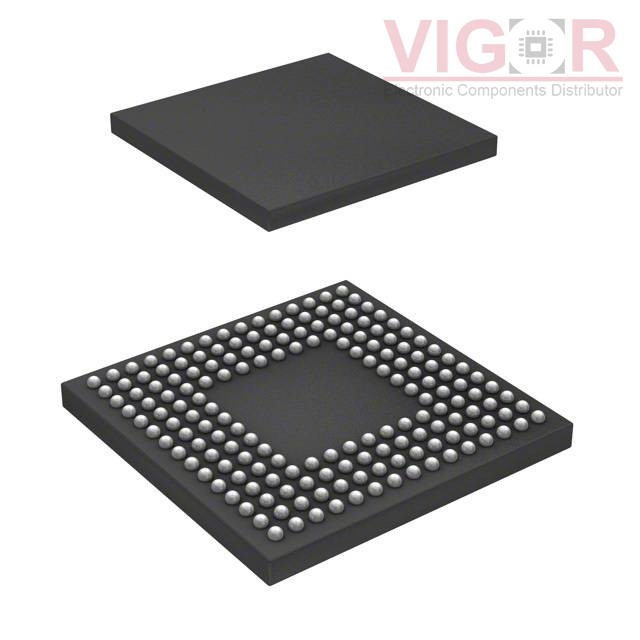

R5F566NNHDBG#20

Part No :: R5F566NNHDBG#20

Manufacturer: Renesas Electronics America

VIGOR # :: 3614088

Description: IC MCU 32BIT 4MB FLASH 176LFBGA

Catalog: Embedded - Microcontrollers

DataSheet: R5F566NNHDBG#20 PDF

Country of origin: -

Date code: -

R5F566NNHDBG#20 Specifications

Type	Description
Series:	RX66N
Package:	Tray
Part Status:	Active
Core Processor:	RXv3
Core Size:	32-Bit
Speed:	120MHz
Connectivity:	CANbus, EBI/EMI, Ethernet, I²C, MMC/SD, QSPI, SCI, SPI, SSI, USB OTG
Peripherals:	DMA, LCD, LVD, POR, PWM, WDT
Number of I/O:	136
Program Memory Size:	4MB (4M x 8)
Program Memory Type:	FLASH
EEPROM Size:	32K x 8
RAM Size:	1M x 8
Voltage - Supply (Vcc/Vdd):	2.7V ~ 3.6V
Data Converters:	A/D 29x12b; D/A 2x12b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	176-LFBGA
Supplier Device Package:	176-LFBGA (13x13)
