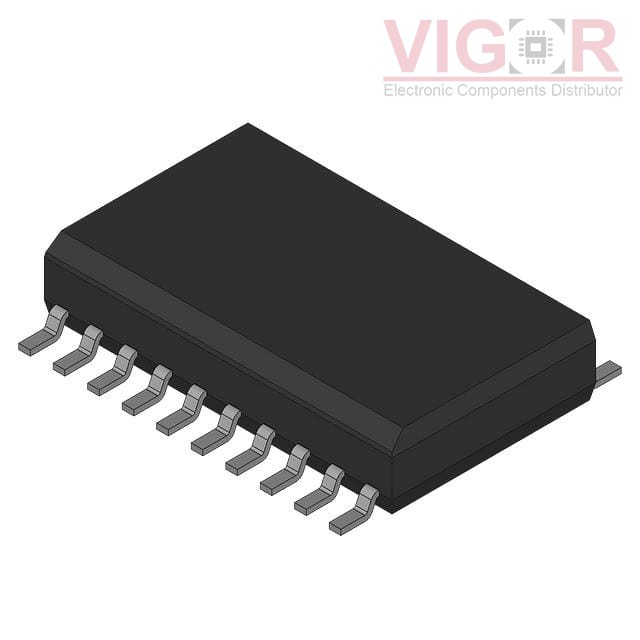

MC9S08PT16VWJ-NXP

Part No :: MC9S08PT16VWJ-NXP

Manufacturer: VIGOR

VIGOR # :: 3616564

Description: IC MCU 8BIT 16KB FLASH 20SOIC

Catalog: Embedded - Microcontrollers

DataSheet: MC9S08PT16VWJ-NXP PDF

Country of origin: -

Date code: -

MC9S08PT16VWJ-NXP Specifications

Type	Description
Series:	S08
Package:	Bulk
Part Status:	Active
Core Processor:	S08
Core Size:	8-Bit
Speed:	20MHz
Connectivity:	I²C, LINbus, SPI, UART/USART
Peripherals:	LVD, POR, PWM, WDT
Number of I/O:	18
Program Memory Size:	16KB (16K x 8)
Program Memory Type:	FLASH
EEPROM Size:	256 x 8
RAM Size:	2K x 8
Voltage - Supply (Vcc/Vdd):	2.7V ~ 5.5V
Data Converters:	A/D 12x12b
Oscillator Type:	External
Operating Temperature:	-40°C ~ 105°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	20-SOIC
