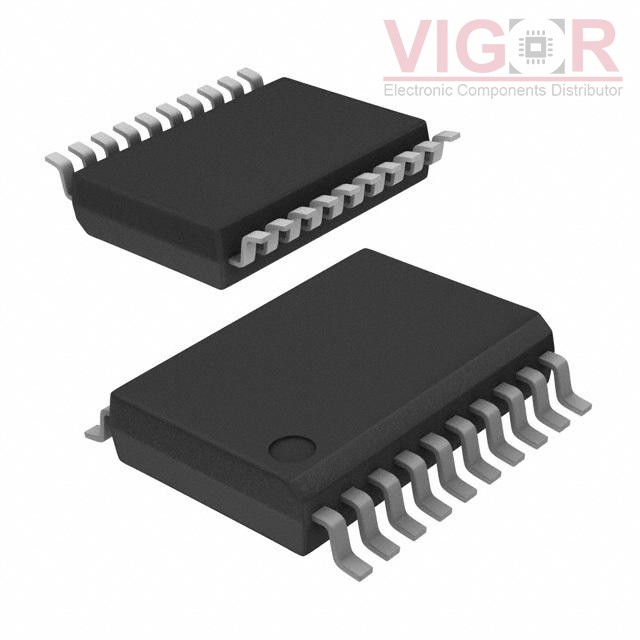

PIC16F1509-I/SS

Part No :: PIC16F1509-I/SS

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 3619252

Description: IC MCU 8BIT 14KB FLASH 20SSOP

Catalog: Embedded - Microcontrollers

DataSheet: PIC16F1509-I/SS PDF

Country of origin: -

Date code: -

PIC16F1509-I/SS Specifications

Type	Description
Series:	PIC® XLP™ 16F
Package:	Tube
Part Status:	Active
Core Processor:	PIC
Core Size:	8-Bit
Speed:	20MHz
Connectivity:	I²C, LINbus, SPI, UART/USART
Peripherals:	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O:	17
Program Memory Size:	14KB (8K x 14)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	512 x 8
Voltage - Supply (Vcc/Vdd):	2.3V ~ 5.5V
Data Converters:	A/D 12x10b; D/A 1x5b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	20-SSOP
