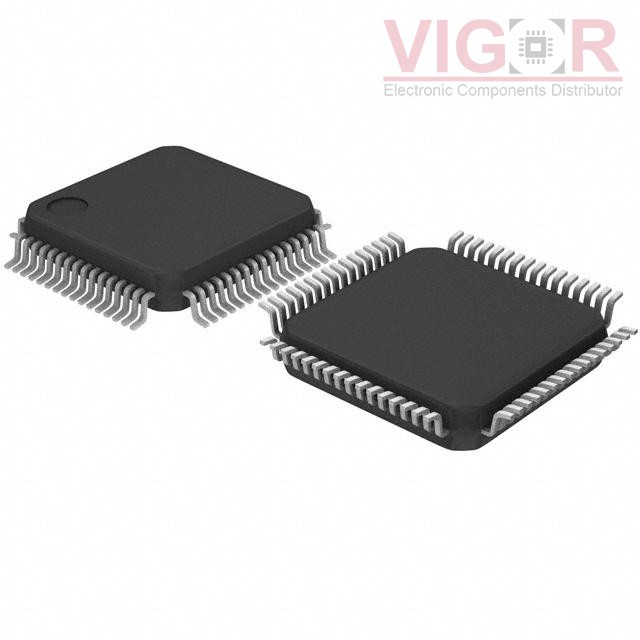

UPD78F0536AGC-GAL-AX

Part No :: UPD78F0536AGC-GAL-AX

Manufacturer: Renesas Electronics America

VIGOR # :: 3636296

Description: IC MCU 8BIT 96KB FLASH 64LQFP

Catalog: Embedded - Microcontrollers

DataSheet: UPD78F0536AGC-GAL-AX PDF

Country of origin: -

Date code: -

UPD78F0536AGC-GAL-AX Specifications

Type	Description
Series:	78K0/Kx2
Package:	Tray
Part Status:	Active
Core Processor:	78K/0
Core Size:	8-Bit
Speed:	20MHz
Connectivity:	3-Wire SIO, I²C, LINbus, UART/USART
Peripherals:	LVD, POR, PWM, WDT
Number of I/O:	55
Program Memory Size:	96KB (96K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	5K x 8
Voltage - Supply (Vcc/Vdd):	1.8V ~ 5.5V
Data Converters:	A/D 8x10b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	64-LQFP
Supplier Device Package:	-
