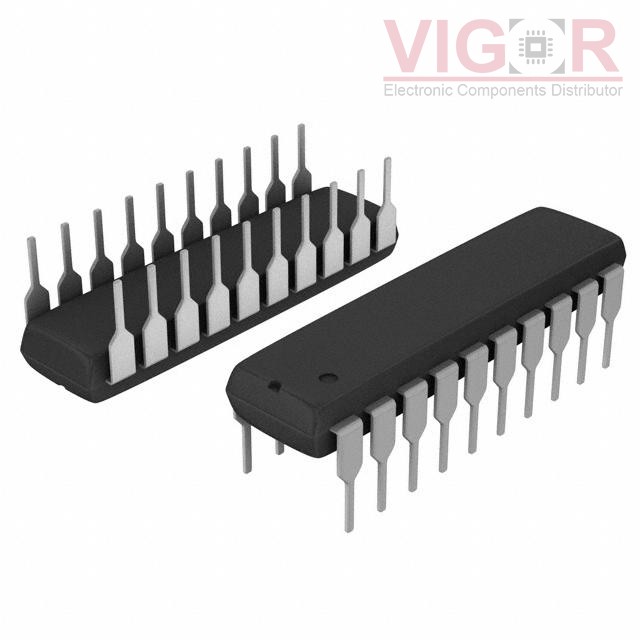

PIC16LF1509-E/P

Part No :: PIC16LF1509-E/P

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 3645340

Description: IC MCU 8BIT 14KB FLASH 20DIP

Catalog: Embedded - Microcontrollers

DataSheet: PIC16LF1509-E/P PDF

Country of origin: -

Date code: -

PIC16LF1509-E/P Specifications

Type	Description
Series:	PIC® XLP™ 16F
Package:	Tube
Part Status:	Active
Core Processor:	PIC
Core Size:	8-Bit
Speed:	20MHz
Connectivity:	I²C, LINbus, SPI, UART/USART
Peripherals:	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O:	17
Program Memory Size:	14KB (8K x 14)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	512 x 8
Voltage - Supply (Vcc/Vdd):	1.8V ~ 3.6V
Data Converters:	A/D 12x10b; D/A 1x5b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Through Hole
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP

Alternative Products

Part Number	Manufacturer & Description	Compare
PIC16LF1508-E/P Match 64%	Roving Networks / Microchip Technology IC MCU 8BIT 7KB FLASH 20DIP	PIC16LF1509-E/P vs PIC16LF1508-E/P
PIC16F1509-E/P Match 100%	Roving Networks / Microchip Technology IC MCU 8BIT 14KB FLASH 20DIP	PIC16LF1509-E/P vs PIC16F1509-E/P
PIC16F1508-E/P Match 64%	Roving Networks / Microchip Technology IC MCU 8BIT 7KB FLASH 20DIP	PIC16LF1509-E/P vs PIC16F1508-E/P

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 420

Shipped from

HK warehouse

Expected Shipping Date

Oct 22 - Oct 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.5730~~	~~$1.57~~

Current price of PIC16LF1509-E/P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

MC9S08JS8LCFK

IC MCU 8BIT 8KB FLASH 24QFN

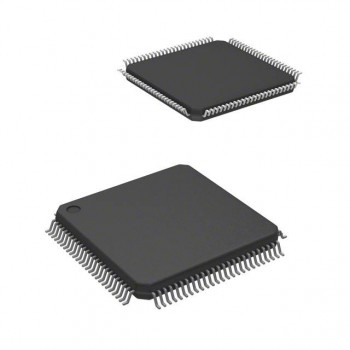

MB91101APMCR-G-JNE1

IC MCU 32BIT ROMLESS 100LQFP

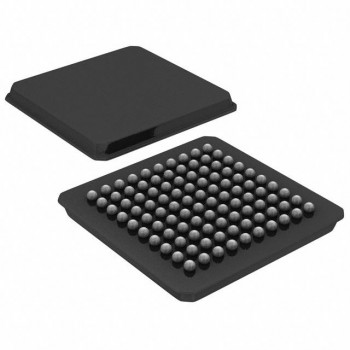

TMS320F2808ZGMS
