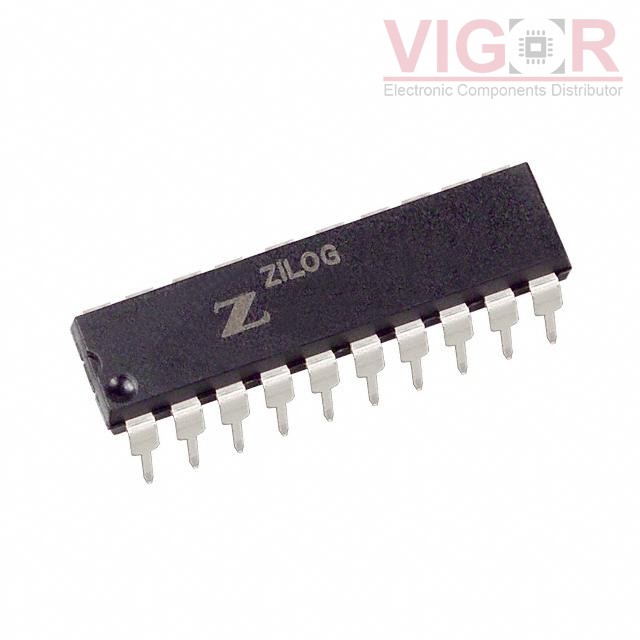

Z8F0423PH005SG2156

Part No :: Z8F0423PH005SG2156

Manufacturer: Zilog / Littelfuse

VIGOR # :: 3652694

Description: IC MCU 8BIT 4KB FLASH 20DIP

Catalog: Embedded - Microcontrollers

DataSheet: Z8F0423PH005SG2156 PDF

Country of origin: -

Date code: -

Z8F0423PH005SG2156 Specifications

Type	Description
Series:	Encore!® XP®
Package:	Tube
Part Status:	Active
Core Processor:	eZ8
Core Size:	8-Bit
Speed:	5MHz
Connectivity:	IrDA, UART/USART
Peripherals:	Brown-out Detect/Reset, LED, POR, PWM, WDT
Number of I/O:	16
Program Memory Size:	4KB (4K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	1K x 8
Voltage - Supply (Vcc/Vdd):	2.7V ~ 3.6V
Data Converters:	A/D 7x10b
Oscillator Type:	Internal
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Through Hole
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP
