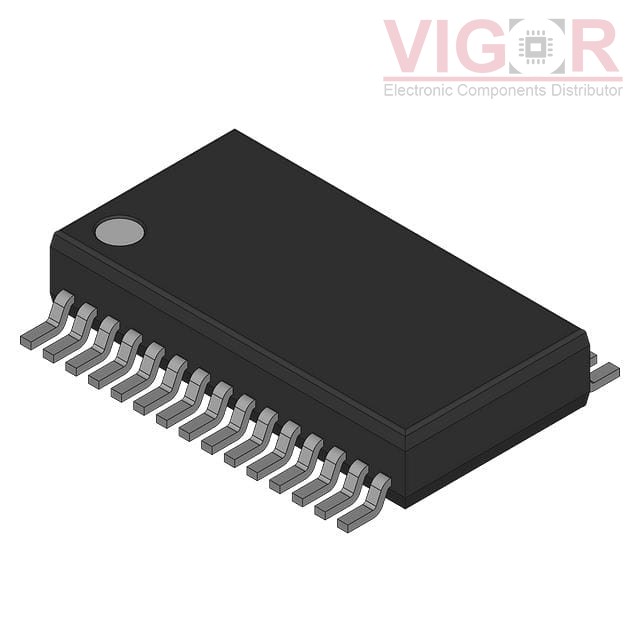

UPD78F0503AMC-CAB-AX

Part No :: UPD78F0503AMC-CAB-AX

Manufacturer: VIGOR

VIGOR # :: 3653477

Description: IC MCU 8BIT 32KB FLASH 30LSSOP

Catalog: Embedded - Microcontrollers

DataSheet: UPD78F0503AMC-CAB-AX PDF

Country of origin: -

Date code: -

UPD78F0503AMC-CAB-AX Specifications

Type	Description
Series:	78K0/Kx2
Package:	Bulk
Part Status:	Active
Core Processor:	78K/0
Core Size:	8-Bit
Speed:	20MHz
Connectivity:	3-Wire SIO, I²C, LINbus, UART/USART
Peripherals:	LVD, POR, PWM, WDT
Number of I/O:	23
Program Memory Size:	32KB (32K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	1K x 8
Voltage - Supply (Vcc/Vdd):	1.8V ~ 5.5V
Data Converters:	A/D 4x10b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	30-LSSOP (0.240", 6.10mm Width)
Supplier Device Package:	30-LSSOP
