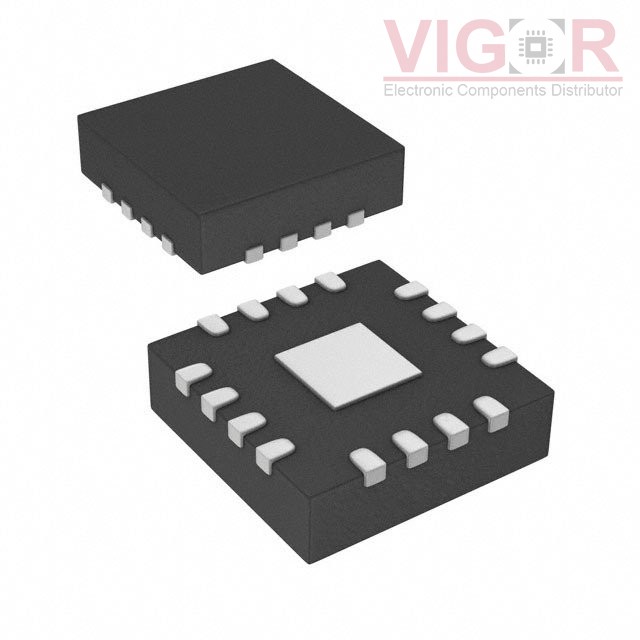

PIC16F505-E/MG

Part No :: PIC16F505-E/MG

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 3654411

Description: IC MCU 8BIT 1.5KB FLASH 16QFN

Catalog: Embedded - Microcontrollers

DataSheet: PIC16F505-E/MG PDF

Country of origin: -

Date code: -

PIC16F505-E/MG Specifications

Type	Description
Series:	PIC® 16F
Package:	Tube
Part Status:	Active
Core Processor:	PIC
Core Size:	8-Bit
Speed:	20MHz
Connectivity:	-
Peripherals:	POR, WDT
Number of I/O:	11
Program Memory Size:	1.5KB (1K x 12)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	72 x 8
Voltage - Supply (Vcc/Vdd):	2V ~ 5.5V
Data Converters:	-
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-VFQFN Exposed Pad
Supplier Device Package:	16-QFN-EP (3x3)
