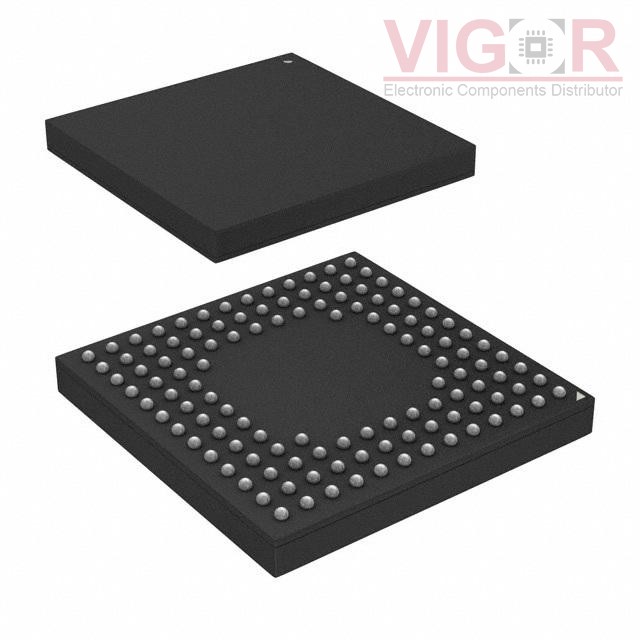

CY8C6136BZI-F34

Part No :: CY8C6136BZI-F34

Manufacturer: Cypress Semiconductor

VIGOR # :: 3655155

Description: IC MCU 32BIT 512KB FLASH 124BGA

Catalog: Embedded - Microcontrollers

DataSheet: CY8C6136BZI-F34 PDF

Country of origin: -

Date code: -

CY8C6136BZI-F34 Specifications

Type	Description
Series:	PSoC® 6
Package:	Tray
Part Status:	Active
Core Processor:	ARM® Cortex®-M4
Core Size:	32-Bit
Speed:	150MHz
Connectivity:	I²C, LINbus, QSPI, SPI, UART/USART, USB
Peripherals:	Brown-out Detect/Reset, Cap Sense, DMA, I²S, POR, PWM, WDT
Number of I/O:	104
Program Memory Size:	512KB (512K x 8)
Program Memory Type:	FLASH
EEPROM Size:	32K x 8
RAM Size:	128K x 8
Voltage - Supply (Vcc/Vdd):	1.7V ~ 3.6V
Data Converters:	A/D 8x12b SAR; D/A 1x12b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	124-VFBGA
Supplier Device Package:	124-BGA (9x9)

Alternative Products

Part Number	Manufacturer & Description	Compare
CY8C6137BZI-F14 Match 63%	Cypress Semiconductor IC MCU 32BIT 1MB FLASH 124BGA	CY8C6136BZI-F34 vs CY8C6137BZI-F14
CY8C6136BZI-F14 Match 100%	Cypress Semiconductor IC MCU 32BIT 512KB FLASH 124BGA	CY8C6136BZI-F34 vs CY8C6136BZI-F14
CY8C6137BZI-F34 Match 63%	Cypress Semiconductor IC MCU 32BIT 1MB FLASH 124BGA	CY8C6136BZI-F34 vs CY8C6137BZI-F34
CY8C6116BZI-F54 Match 62%	Cypress Semiconductor IC MCU 32BIT 512KB FLASH 124BGA	CY8C6136BZI-F34 vs CY8C6116BZI-F54
CY8C6137BZI-F54 Match 63%	Cypress Semiconductor IC MCU 32BIT 1MB FLASH 124BGA	CY8C6136BZI-F34 vs CY8C6137BZI-F54
CY8C6036BZI-F04 Match 100%	Cypress Semiconductor IC MCU 32BIT 512KB FLASH 124BGA	CY8C6136BZI-F34 vs CY8C6036BZI-F04

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1167

Shipped from

HK warehouse

Expected Shipping Date

Jul 23 - Jul 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.0966~~	~~$7.10~~
10	~~$6.3839~~	~~$63.84~~
25	~~$5.8161~~	~~$145.40~~
100	~~$5.2486~~	~~$524.86~~
260	~~$4.8231~~	~~$1 254.00~~
520	~~$4.3975~~	~~$2 286.70~~
1040	~~$3.8301~~	~~$3 983.29~~

Current price of CY8C6136BZI-F34 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
