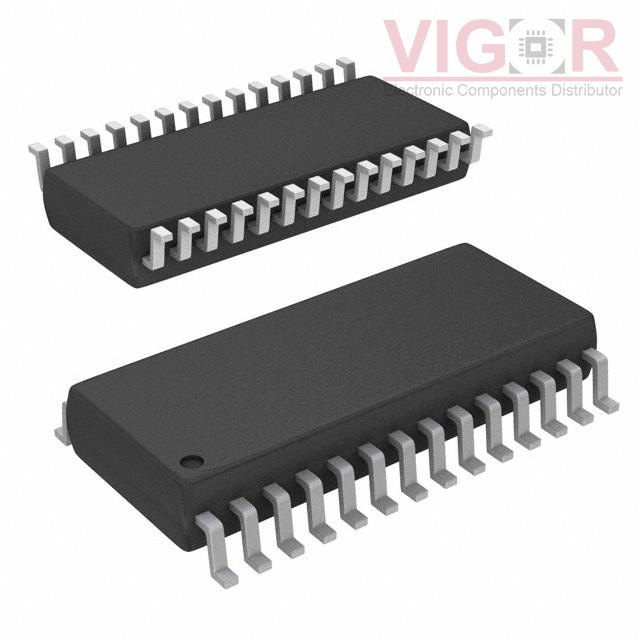

CY8C22345-24SXIT

Part No :: CY8C22345-24SXIT

Manufacturer: VIGOR

VIGOR # :: 3657334

Description: IC MCU 8BIT 16KB FLASH 28SOIC

Catalog: Embedded - Microcontrollers

DataSheet: CY8C22345-24SXIT PDF

Country of origin: -

Date code: -

CY8C22345-24SXIT Specifications

Type	Description
Series:	PSOC®1 CY8C22xxx
Package:	Bulk
Part Status:	Active
Core Processor:	M8C
Core Size:	8-Bit
Speed:	24MHz
Connectivity:	I²C, IrDA, SPI, UART/USART
Peripherals:	LVD, POR, PWM, WDT
Number of I/O:	24
Program Memory Size:	16KB (16K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	1K x 8
Voltage - Supply (Vcc/Vdd):	3V ~ 5.25V
Data Converters:	A/D 3x10b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	28-SOIC

Alternative Products

Part Number	Manufacturer & Description	Compare
CY8C24423A-24SXIT Match 62%	Cypress Semiconductor IC MCU 8BIT 4KB FLASH 28SOIC	CY8C22345-24SXIT vs CY8C24423A-24SXIT
CY8C21345-24SXIT Match 62%	Cypress Semiconductor IC MCU 8BIT 8KB FLASH 28SOIC	CY8C22345-24SXIT vs CY8C21345-24SXIT
CY8C27443-24SXI Match 100%	Cypress Semiconductor IC MCU 8BIT 16KB FLASH 28SOIC	CY8C22345-24SXIT vs CY8C27443-24SXI
CY8C24423A-24SXI Match 62%	Cypress Semiconductor IC MCU 8BIT 4KB FLASH 28SOIC	CY8C22345-24SXIT vs CY8C24423A-24SXI
CY8C29466-24SXI Match 62%	Cypress Semiconductor IC MCU 8BIT 32KB FLASH 28SOIC	CY8C22345-24SXIT vs CY8C29466-24SXI
CY8C29466-24SXIT Match 62%	Cypress Semiconductor IC MCU 8BIT 32KB FLASH 28SOIC	CY8C22345-24SXIT vs CY8C29466-24SXIT

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1016

Shipped from

HK warehouse

Expected Shipping Date

Jul 23 - Jul 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.4200~~	~~$3.42~~
1000	~~$3.1220~~	~~$3 122.00~~

Current price of CY8C22345-24SXIT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
