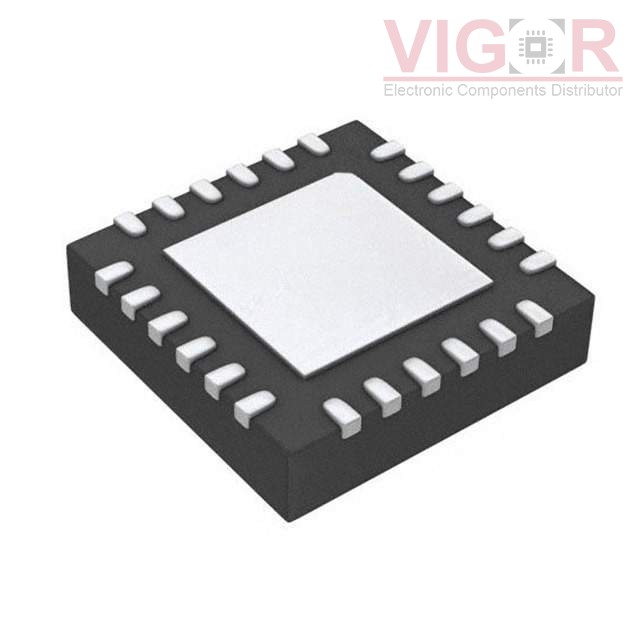

EFM8SB20F16G-A-QFN24

Part No :: EFM8SB20F16G-A-QFN24

Manufacturer: Silicon Labs

VIGOR # :: 4791259

Description: IC MCU 8BIT 16KB FLASH 24QFN

Catalog: Embedded - Microcontrollers

DataSheet: EFM8SB20F16G-A-QFN24 PDF

Country of origin: -

Date code: -

EFM8SB20F16G-A-QFN24 Specifications

Type	Description
Series:	Sleepy Bee
Package:	Tube
Part Status:	Discontinued at Digi-Key
Core Processor:	CIP-51 8051
Core Size:	8-Bit
Speed:	25MHz
Connectivity:	EBI/EMI, I²C, SMBus, SPI, UART/USART
Peripherals:	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O:	16
Program Memory Size:	16KB (16K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	4.25K x 8
Voltage - Supply (Vcc/Vdd):	1.8V ~ 3.6V
Data Converters:	A/D 15x10b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-WFQFN Exposed Pad
Supplier Device Package:	24-QFN (4x4)

Alternative Products

Part Number	Manufacturer & Description	Compare
EFM8SB20F32G-B-QFN24R Match 74%	Silicon Labs IC MCU 8BIT 32KB FLASH 24QFN	EFM8SB20F16G-A-QFN24 vs EFM8SB20F32G-B-QFN24R
EFM8SB20F64G-B-QFN24R Match 74%	Silicon Labs IC MCU 8BIT 64KB FLASH 24QFN	EFM8SB20F16G-A-QFN24 vs EFM8SB20F64G-B-QFN24R
EFM8SB20F16G-B-QFN24R Match 100%	Silicon Labs IC MCU 8BIT 16KB FLASH 24QFN	EFM8SB20F16G-A-QFN24 vs EFM8SB20F16G-B-QFN24R
EFM8SB20F16G-B-QFN24 Match 100%	Silicon Labs IC MCU 8BIT 16KB FLASH 24QFN	EFM8SB20F16G-A-QFN24 vs EFM8SB20F16G-B-QFN24
EFM8SB20F64G-B-QFN24 Match 74%	Silicon Labs IC MCU 8BIT 64KB FLASH 24QFN	EFM8SB20F16G-A-QFN24 vs EFM8SB20F64G-B-QFN24
EFM8SB20F32G-B-QFN24 Match 74%	Silicon Labs IC MCU 8BIT 32KB FLASH 24QFN	EFM8SB20F16G-A-QFN24 vs EFM8SB20F32G-B-QFN24
