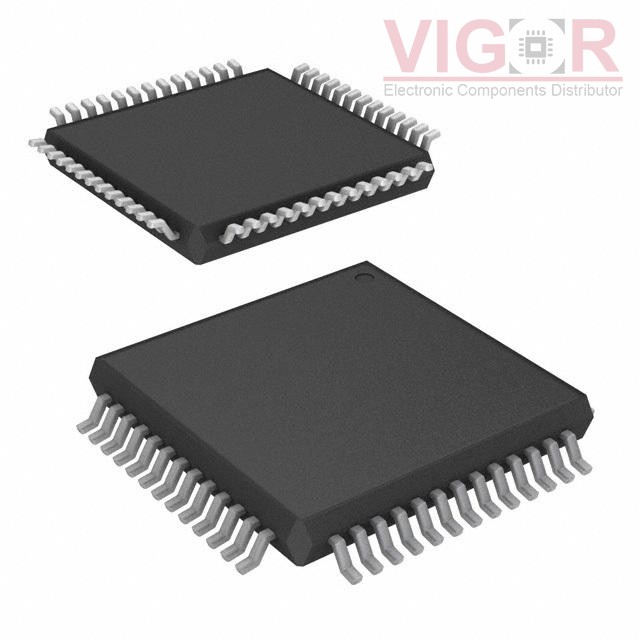

UPD78F1005GB-GAG-AX

Part No :: UPD78F1005GB-GAG-AX

Manufacturer: Renesas Electronics America

VIGOR # :: 4799592

Description: IC MCU 16BIT 48KB FLASH 52LQFP

Catalog: Embedded - Microcontrollers

DataSheet: UPD78F1005GB-GAG-AX PDF

Country of origin: -

Date code: -

UPD78F1005GB-GAG-AX Specifications

Type	Description
Series:	78K0R/Kx3-L
Package:	Tray
Part Status:	Active
Core Processor:	78K/0R
Core Size:	16-Bit
Speed:	20MHz
Connectivity:	3-Wire SIO, I²C, LINbus, UART/USART
Peripherals:	DMA, LVD, POR, PWM, WDT
Number of I/O:	40
Program Memory Size:	48KB (48K x 8)
Program Memory Type:	FLASH
EEPROM Size:	-
RAM Size:	2K x 8
Voltage - Supply (Vcc/Vdd):	1.8V ~ 5.5V
Data Converters:	A/D 11x10b
Oscillator Type:	Internal
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	52-LQFP
Supplier Device Package:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
UPD78F1004GB-GAG-AX Match 74%	Renesas Electronics America IC MCU 16BIT 32KB FLASH 52LQFP	UPD78F1005GB-GAG-AX vs UPD78F1004GB-GAG-AX
UPD78F1224GB-GAG-AX Match 74%	Renesas Electronics America IC MCU 16BIT 48KB FLASH 52LQFP	UPD78F1005GB-GAG-AX vs UPD78F1224GB-GAG-AX
UPD78F1006GB-GAG-AX Match 74%	Renesas Electronics America IC MCU 16BIT 64KB FLASH 52LQFP	UPD78F1005GB-GAG-AX vs UPD78F1006GB-GAG-AX
