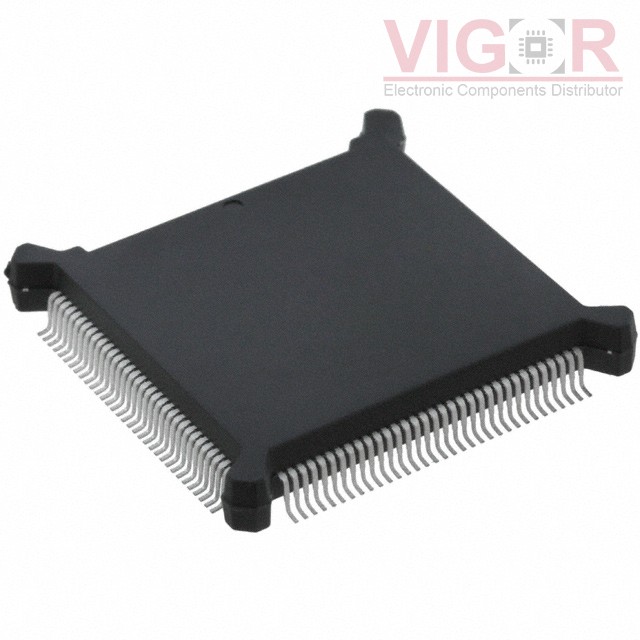

MC68302EH20CR2

Part No :: MC68302EH20CR2

Manufacturer: NXP Semiconductors

VIGOR # :: 4853585

Description: IC MPU M683XX 20MHZ 132QFP

Catalog: Embedded - Microprocessors

DataSheet: MC68302EH20CR2 PDF

Country of origin: -

Date code: -

MC68302EH20CR2 Specifications

Type	Description
Series:	M683xx
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Core Processor:	M68000
Number of Cores/Bus Width:	1 Core, 8/16-Bit
Speed:	20MHz
Co-Processors/DSP:	Communications; RISC CPM
RAM Controllers:	DRAM
Graphics Acceleration:	No
Display & Interface Controllers:	-
Ethernet:	-
SATA:	-
USB:	-
Voltage - I/O:	5.0V
Operating Temperature:	0°C ~ 70°C (TA)
Security Features:	-
Package / Case:	132-BQFP Bumpered
Supplier Device Package:	132-PQFP (46x46)
