NJU4066BD

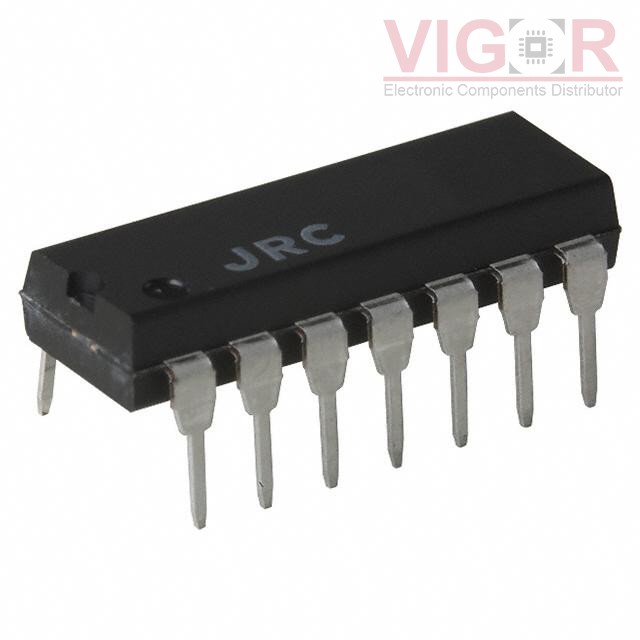

Image is for reference,
please contact us to get the real picture

Part No :: NJU4066BD

Manufacturer: New Japan Radio (NJR)

Description: IC SWITCH QUAD 1X1 14DIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: NJU4066BD PDF

Availability: 124 pieces

Unit Price: ~~$0.60674~~

Current price of NJU4066BD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NJU4066BD Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	240Ohm
Channel-to-Channel Matching (ΔRon):	5Ohm
Voltage - Supply, Single (V+):	3V ~ 18V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	-
-3db Bandwidth:	-
Charge Injection:	-
Channel Capacitance (CS(off), CD(off)):	7.5pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-50dB @ 8MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	14-DIP
Supplier Device Package:	14-DIP
