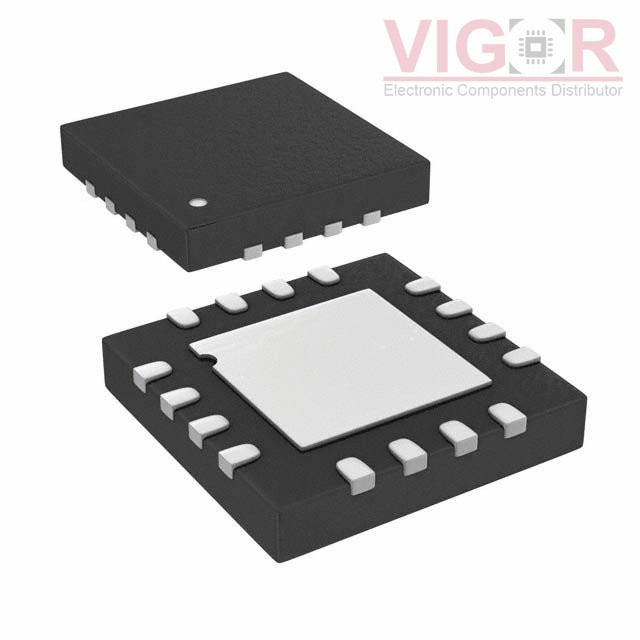

ADG5204BCPZ-RL7

Part No :: ADG5204BCPZ-RL7

Manufacturer: VIGOR

VIGOR # :: 3924677

Description: SINGLE-ENDED MULTIPLEXER, 4 CHAN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG5204BCPZ-RL7 PDF

Country of origin: -

Date code: -

ADG5204BCPZ-RL7 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	1
On-State Resistance (Max):	160Ohm
Channel-to-Channel Matching (ΔRon):	4.5Ohm
Voltage - Supply, Single (V+):	9V ~ 40V
Voltage - Supply, Dual (V±):	±9V ~ 22V
Switch Time (Ton, Toff) (Max):	185ns, 175ns
-3db Bandwidth:	150MHz
Charge Injection:	-0.6pC
Channel Capacitance (CS(off), CD(off)):	3pF, 26pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-80dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-WQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP-WQ (4x4)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1590

Shipped from

HK warehouse

Expected Shipping Date

Apr 30 - May 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.0100~~	~~$3.01~~
1500	~~$3.0100~~	~~$4 515.00~~

Current price of ADG5204BCPZ-RL7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LF13332M

SPST, 4 FUNC, 1 CHANNEL, BIMOS

DG456EQ-T1-E3

IC SWITCH QUAD SPST 16TSSOP

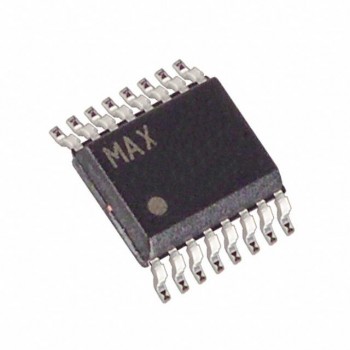

MAX338CEE+
