NS5A4684SMNTAG

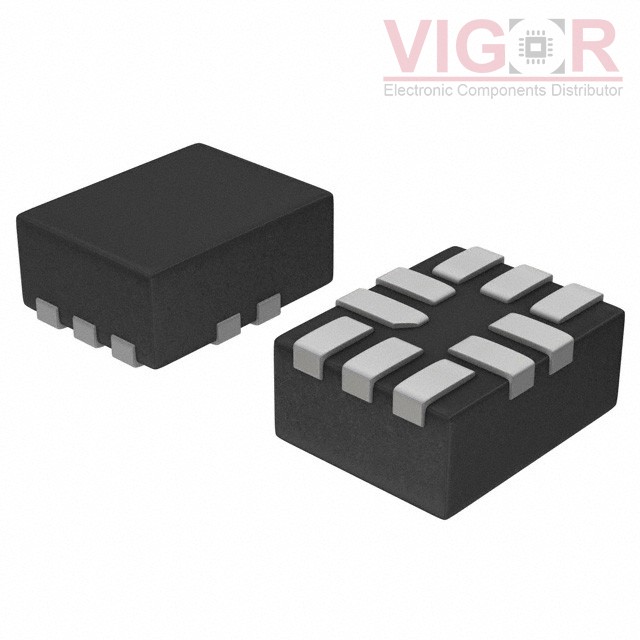

Image is for reference,
please contact us to get the real picture

Part No :: NS5A4684SMNTAG

Manufacturer: VIGOR

Description: SPDT, 2 FUNC, CMOS, PQCC10

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: NS5A4684SMNTAG PDF

Availability: 150 pieces

Unit Price: ~~$0.28000~~

Current price of NS5A4684SMNTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NS5A4684SMNTAG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	400mOhm
Channel-to-Channel Matching (ΔRon):	100mOhm (Max)
Voltage - Supply, Single (V+):	1.65V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	50ns, 30ns
-3db Bandwidth:	19MHz
Charge Injection:	38pC
Channel Capacitance (CS(off), CD(off)):	60pF
Current - Leakage (IS(off)) (Max):	100nA
Crosstalk:	-70dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-WFQFN
Supplier Device Package:	10-WQFN (1.4x1.8)
