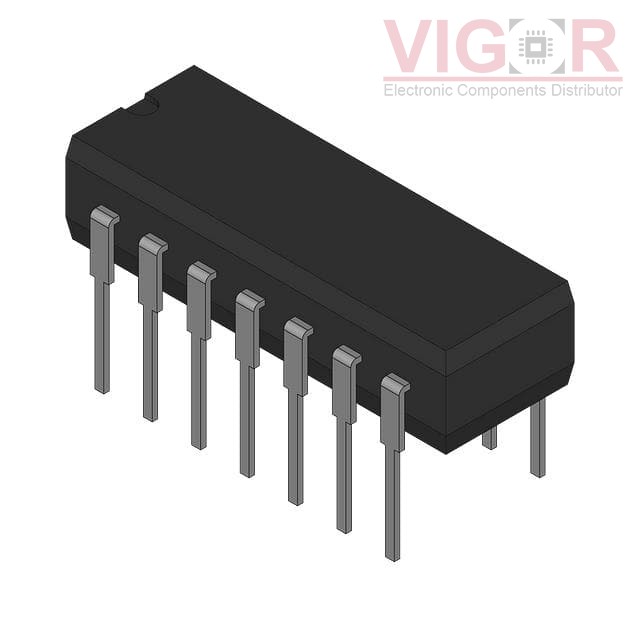

MAX4066ACPD

Part No :: MAX4066ACPD

Manufacturer: VIGOR

VIGOR # :: 3925282

Description: QUAD, SPST ANALOG SWITCH

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: MAX4066ACPD PDF

Country of origin: -

Date code: -

MAX4066ACPD Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Circuit:	SPST - NO
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	45Ohm
Channel-to-Channel Matching (ΔRon):	500mOhm
Voltage - Supply, Single (V+):	2V ~ 16V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	100ns, 75ns
-3db Bandwidth:	100MHz
Charge Injection:	1pC
Channel Capacitance (CS(off), CD(off)):	9pF, 9pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-86dB @ 1MHz
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Through Hole
Package / Case:	14-DIP (0.300", 7.62mm)
Supplier Device Package:	14-PDIP
