ADG723ACPZ-REEL7

Part No :: ADG723ACPZ-REEL7

Manufacturer: VIGOR

VIGOR # :: 3925285

Description: DUAL SPST SWITCH

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG723ACPZ-REEL7 PDF

Country of origin: -

Date code: -

ADG723ACPZ-REEL7 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Switch Circuit:	SPST - NO/NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	2
On-State Resistance (Max):	4Ohm
Channel-to-Channel Matching (ΔRon):	300mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	14ns, 6ns (Typ)
-3db Bandwidth:	200MHz
Charge Injection:	2pC
Channel Capacitance (CS(off), CD(off)):	7pF, 7pF
Current - Leakage (IS(off)) (Max):	10pA (Typ)
Crosstalk:	-97dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

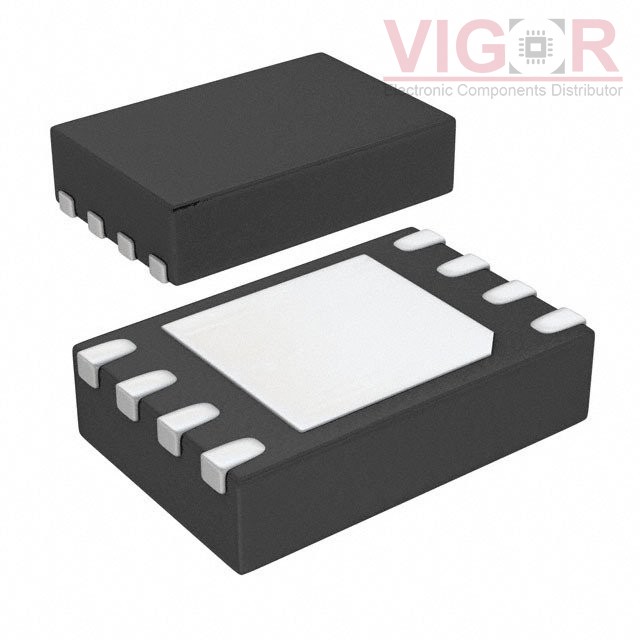

Package / Case:	8-WFDFN Exposed Pad, CSP
Supplier Device Package:	8-LFCSP-WD (2x3)

Alternative Products

Part Number	Manufacturer & Description	Compare
74LV4051BQ,115 Match 100%	Nexperia IC MUX/DEMUX 8X1 16DHVQFN	ADG723ACPZ-REEL7 vs 74LV4051BQ,115
74LV4051PW,112 Match 100%	Nexperia IC MUX/DEMUX 8X1 16TSSOP	ADG723ACPZ-REEL7 vs 74LV4051PW,112
ADG1433YRUZ-REEL Match 100%	Linear Technology (Analog Devices, Inc.) IC SWITCH TRIPLE SPDT 16TSSOP	ADG723ACPZ-REEL7 vs ADG1433YRUZ-REEL
STG719STR Match 100%	STMicroelectronics IC SWITCH SPDT SOT23-6	ADG723ACPZ-REEL7 vs STG719STR
CD74HC4053M96 Match 100%	Texas Instruments IC MUX/DEMUX TRIPLE 2X1 16SOIC	ADG723ACPZ-REEL7 vs CD74HC4053M96
PI5A3166CEX Match 100%	Zetex Semiconductors (Diodes Inc.) IC SWITCH SPST 0.8 OHM SC70-5	ADG723ACPZ-REEL7 vs PI5A3166CEX
