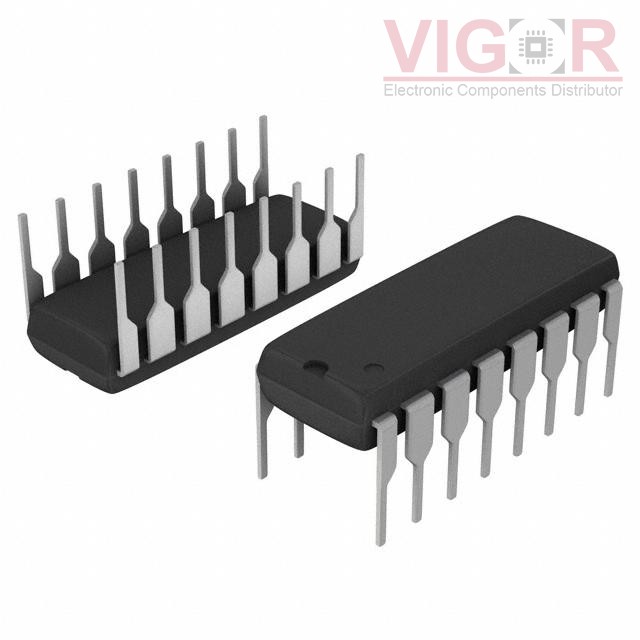

DG309BDJ-E3

Part No :: DG309BDJ-E3

Manufacturer: Vishay / Siliconix

VIGOR # :: 3925541

Description: IC SWITCH QUAD CMOS 16DIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG309BDJ-E3 PDF

Country of origin: -

Date code: -

DG309BDJ-E3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	SPST - NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	85Ohm
Channel-to-Channel Matching (ΔRon):	1.7Ohm
Voltage - Supply, Single (V+):	4V ~ 44V
Voltage - Supply, Dual (V±):	±4V ~ 22V
Switch Time (Ton, Toff) (Max):	200ns, 150ns
-3db Bandwidth:	-
Charge Injection:	1pC
Channel Capacitance (CS(off), CD(off)):	5pF, 5pF
Current - Leakage (IS(off)) (Max):	500pA
Crosstalk:	-95dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Through Hole
Package / Case:	16-DIP (0.300", 7.62mm)
Supplier Device Package:	16-PDIP
