LMS4684ITLX/NOPB

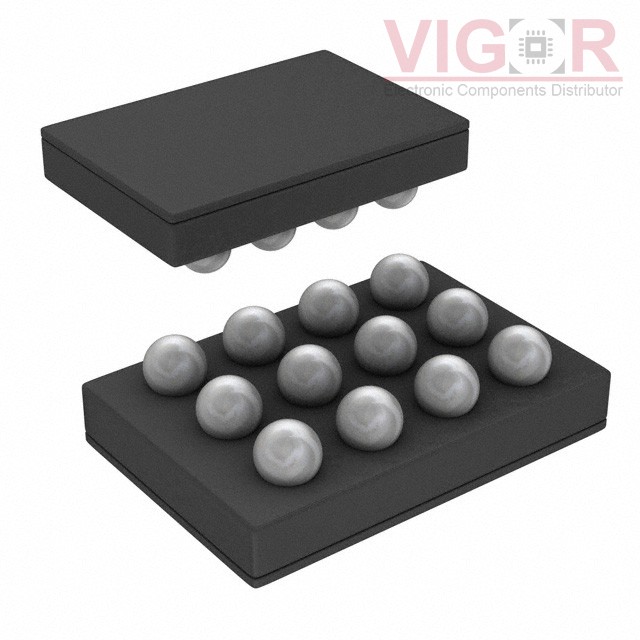

Image is for reference,
please contact us to get the real picture

Part No :: LMS4684ITLX/NOPB

Manufacturer: Texas Instruments

Description: IC SWITCH DUAL SPDT 12USMD

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: LMS4684ITLX/NOPB PDF

Availability: 6364 pieces

Unit Price: ~~$0.61456~~

Current price of LMS4684ITLX/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LMS4684ITLX/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	800mOhm
Channel-to-Channel Matching (ΔRon):	1.11mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	60ns, 40ns
-3db Bandwidth:	-
Charge Injection:	200pC
Channel Capacitance (CS(off), CD(off)):	-
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-72dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	12-WFBGA
Supplier Device Package:	12-µSMD (1.59x2.33)
