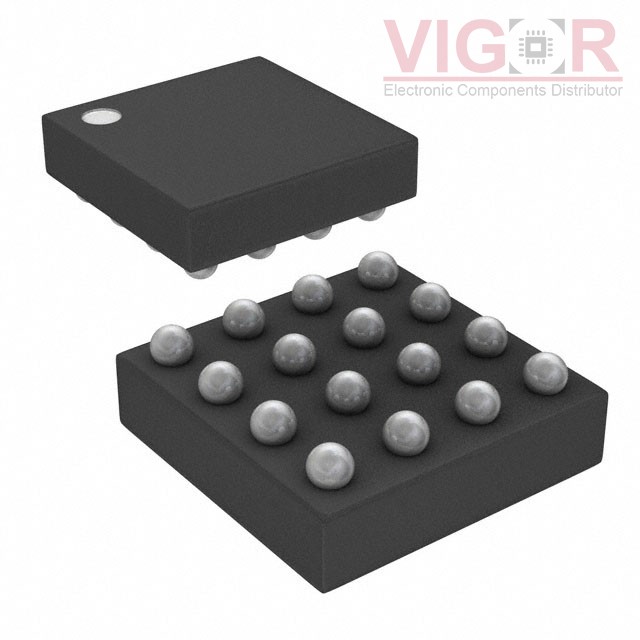

DG2503DB-T2-GE1

Part No :: DG2503DB-T2-GE1

Manufacturer: Vishay / Siliconix

VIGOR # :: 3926945

Description: IC SWITCH SPST 150 OHM 16WCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG2503DB-T2-GE1 PDF

Country of origin: -

Date code: -

DG2503DB-T2-GE1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SPST - NO/NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	4
On-State Resistance (Max):	8Ohm
Channel-to-Channel Matching (ΔRon):	-
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	100ns, 60ns
-3db Bandwidth:	550MHz
Charge Injection:	-2pC
Channel Capacitance (CS(off), CD(off)):	2.9pF, 2.8pF
Current - Leakage (IS(off)) (Max):	400pA
Crosstalk:	-83dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-XFBGA, WLCSP
Supplier Device Package:	16-WCSP (1.44x1.44)
