DG301ABA

DG301ABA

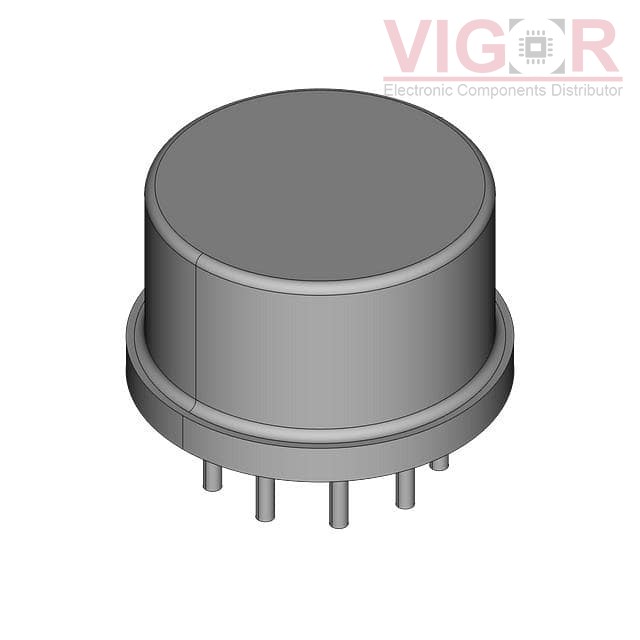

Image is for reference,
please contact us to get the real picture

Part No :

DG301ABA

Manufacturer
VIGOR
Description
CMOS ANALOG SWITCH
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Oct 17 - Oct 21 2025
DataSheet
DG301ABA PDF
Availability
324 pieces
Unit Price
$6.98000

Current price of DG301ABA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DG301ABA Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:1
On-State Resistance (Max):50Ohm
Channel-to-Channel Matching (ΔRon):-
Voltage - Supply, Single (V+):-
Voltage - Supply, Dual (V±):±15V
Switch Time (Ton, Toff) (Max):300ns, 250ns
-3db Bandwidth:-
Charge Injection:8pC
Channel Capacitance (CS(off), CD(off)):14pF, 14pF
Current - Leakage (IS(off)) (Max):1nA
Crosstalk:-74dB @ 500kHz
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Through Hole
Package / Case:TO-100-10 Metal Can
Supplier Device Package:TO-100-10
