STG3820BJR

Part No :: STG3820BJR

Manufacturer: STMicroelectronics

VIGOR # :: 3930188

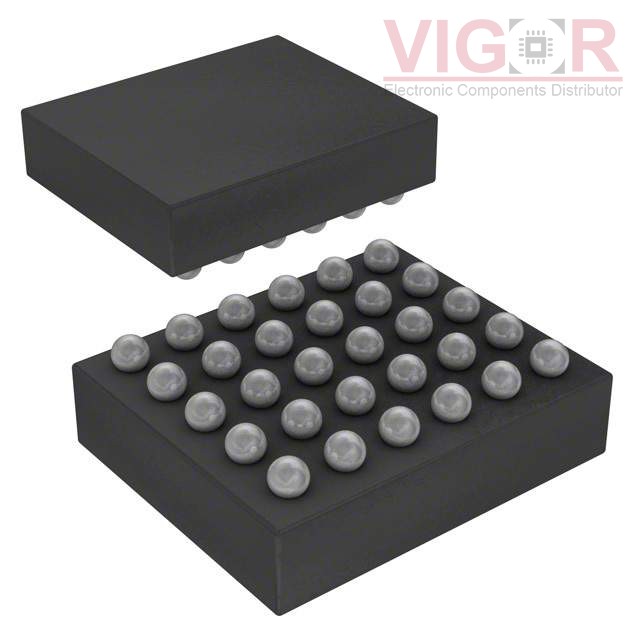

Description: IC SWITCH QUAD DPDT 30FLIPCHIP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: STG3820BJR PDF

Country of origin: -

Date code: -

STG3820BJR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	DPDT
Multiplexer/Demultiplexer Circuit:	2:2
Number of Circuits:	4
On-State Resistance (Max):	5.8Ohm
Channel-to-Channel Matching (ΔRon):	300mOhm
Voltage - Supply, Single (V+):	1.65V ~ 4.3V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	15ns, 13ns
-3db Bandwidth:	800MHz
Charge Injection:	6.4pC
Channel Capacitance (CS(off), CD(off)):	2pF
Current - Leakage (IS(off)) (Max):	20nA
Crosstalk:	-78dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	30-WFBGA, FCBGA
Supplier Device Package:	FlipChip 30

Alternative Products

Part Number	Manufacturer & Description	Compare
QS4A205QG Match 95%	Renesas Electronics America IC MUX/DEMUX QUAD SPDT 16QSOP	STG3820BJR vs QS4A205QG
QS4A205QG8 Match 95%	VIGOR QS4A205 - QUICKSWITCH HIGH-PERFO	STG3820BJR vs QS4A205QG8
ADG1204YRUZ Match 100%	Linear Technology (Analog Devices, Inc.) IC MULTIPLEXER 4X1 14TSSOP	STG3820BJR vs ADG1204YRUZ
TMUX6111PWR Match 100%	Texas Instruments IC SWITCH SPST QUAD 16TSSOP	STG3820BJR vs TMUX6111PWR
TMUX6113PWR Match 100%	Texas Instruments IC SWITCH SPST QUAD 16TSSOP	STG3820BJR vs TMUX6113PWR
TMUX6112PWR Match 100%	Texas Instruments IC SWITCH SPST SINGLE 16TSSOP	STG3820BJR vs TMUX6112PWR
