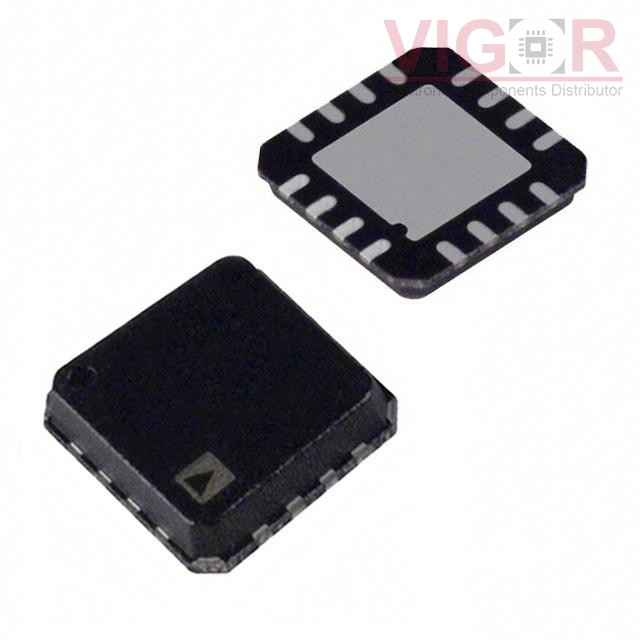

ADG1409YCPZ-REEL7

Part No :: ADG1409YCPZ-REEL7

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3930676

Description: IC MULTIPLEXER DUAL 4X1 16LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG1409YCPZ-REEL7 PDF

Country of origin: -

Date code: -

ADG1409YCPZ-REEL7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	4.7Ohm
Channel-to-Channel Matching (ΔRon):	200mOhm
Voltage - Supply, Single (V+):	5V ~ 16.5V
Voltage - Supply, Dual (V±):	±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max):	120ns, 120ns
-3db Bandwidth:	115MHz
Charge Injection:	-50pC
Channel Capacitance (CS(off), CD(off)):	14pF, 40pF
Current - Leakage (IS(off)) (Max):	200pA
Crosstalk:	-70dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-VQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP-VQ (4x4)
