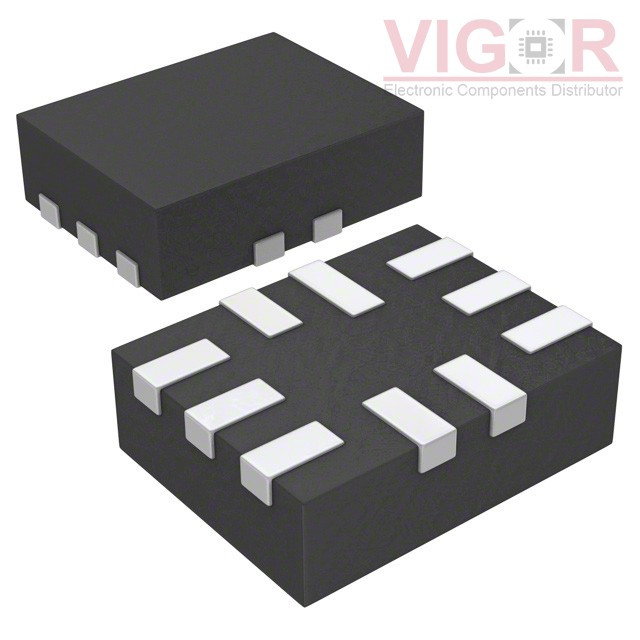

DG9236DN-T1-E4

Part No :: DG9236DN-T1-E4

Manufacturer: Vishay / Siliconix

VIGOR # :: 4921556

Description: IC ANLG SWITCH DUAL SPST 10QFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG9236DN-T1-E4 PDF

Country of origin: -

Date code: -

DG9236DN-T1-E4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	145Ohm
Channel-to-Channel Matching (ΔRon):	2Ohm
Voltage - Supply, Single (V+):	2.7V ~ 16V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	70ns, 55ns
-3db Bandwidth:	800MHz
Charge Injection:	6pC
Channel Capacitance (CS(off), CD(off)):	2pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-70dB @ 10MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-UFQFN
Supplier Device Package:	10-miniQFN (1.4x1.8)
