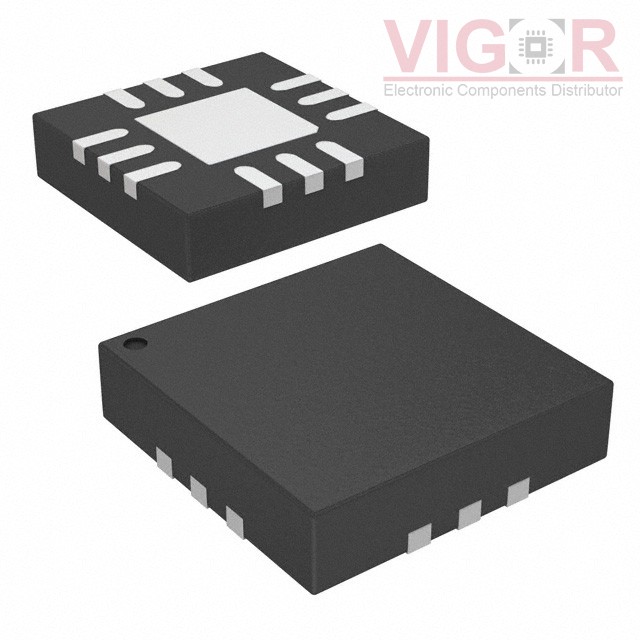

DG2032DN-T1-E4

Part No :: DG2032DN-T1-E4

Manufacturer: Vishay / Siliconix

VIGOR # :: 4922121

Description: IC SWITCH DUAL CMOS 12QFN

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: DG2032DN-T1-E4 PDF

Country of origin: -

Date code: -

DG2032DN-T1-E4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	5Ohm
Channel-to-Channel Matching (ΔRon):	400mOhm (Max)
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	53ns, 38ns
-3db Bandwidth:	-
Charge Injection:	38pC
Channel Capacitance (CS(off), CD(off)):	15pF
Current - Leakage (IS(off)) (Max):	1nA
Crosstalk:	-82dB @ 1MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	12-VFQFN Exposed Pad
Supplier Device Package:	12-QFN (3x3)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 430
