Part No :

7705302EA

Manufacturer
Maxim Integrated
VIGOR # :

4922298

Description

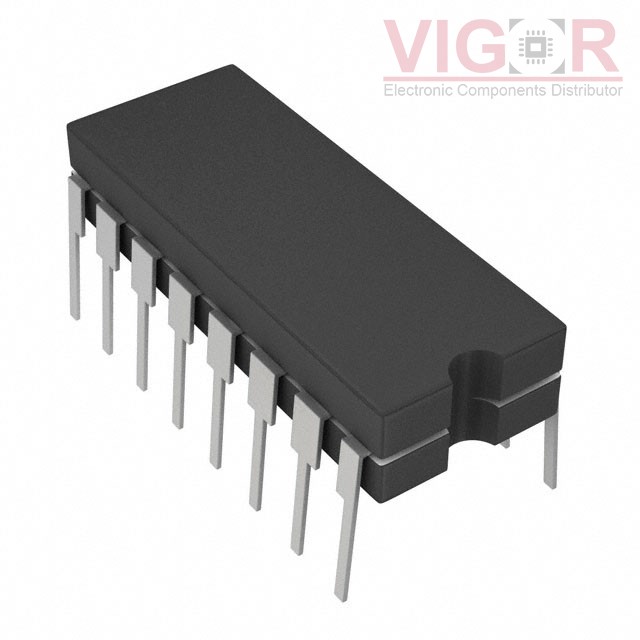

IC SWITCH SPST QUAD 16CDIP
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
DataSheet
7705302EA PDF
Country of origin
Confirming
Date code
TBC
ads
Type Description
Series:-
Package:Tube
Part Status:Active
Switch Circuit:SPST - NC
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:4
On-State Resistance (Max):50Ohm
Channel-to-Channel Matching (ΔRon):-
Voltage - Supply, Single (V+):12V ~ 20V
Voltage - Supply, Dual (V±):±5V ~ 20V
Switch Time (Ton, Toff) (Max):50ns, 50ns
-3db Bandwidth:-
Charge Injection:10pC
Channel Capacitance (CS(off), CD(off)):10pF, 10pF
Current - Leakage (IS(off)) (Max):1nA
Crosstalk:-90dB @ 100kHz
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Through Hole
Package / Case:16-CDIP (0.300", 7.62mm)
Supplier Device Package:16-CDIP
