PI5A127UEX

Part No :: PI5A127UEX

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 4922994

Description: IC ANALOG SWITCH SPST DUAL 8MSOP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: PI5A127UEX PDF

Country of origin: -

Date code: -

PI5A127UEX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	SPST - NC
Multiplexer/Demultiplexer Circuit:	1:1
Number of Circuits:	2
On-State Resistance (Max):	10Ohm
Channel-to-Channel Matching (ΔRon):	200mOhm
Voltage - Supply, Single (V+):	2V ~ 6V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	15ns, 7ns
-3db Bandwidth:	326MHz
Charge Injection:	1.6pC
Channel Capacitance (CS(off), CD(off)):	5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max):	200pA (Typ)
Crosstalk:	-43dB @ 10MHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

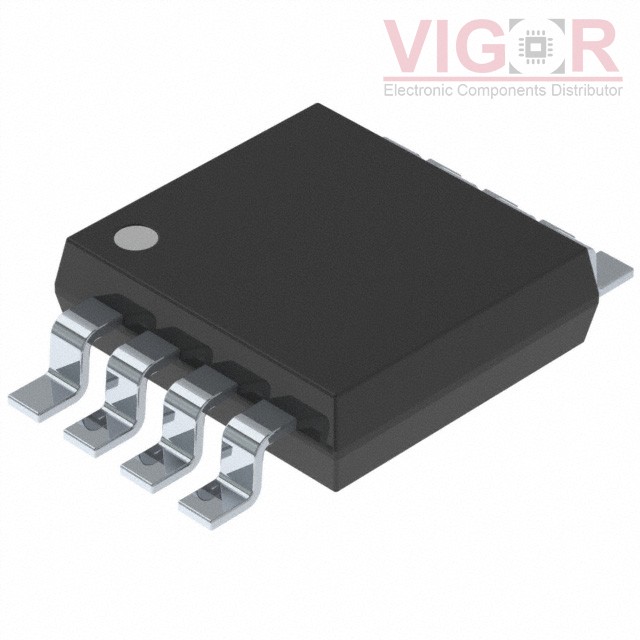

Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	8-MSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
PI5A124TEX Match 100%	Zetex Semiconductors (Diodes Inc.) IC SWITCH SPDT SOT23-6	PI5A127UEX vs PI5A124TEX
TS5A2053DCUR Match 98%	Texas Instruments IC SWITCH SPDT SINGLE 8VSSOP	PI5A127UEX vs TS5A2053DCUR
TS5A2053DCTR Match 98%	VIGOR TS5A2053 10-OHM SPDT ANALOG SWIT	PI5A127UEX vs TS5A2053DCTR
PI5A121BCEX Match 100%	Zetex Semiconductors (Diodes Inc.) IC SWITCH SINGLE SPST SC70	PI5A127UEX vs PI5A121BCEX
ADG795ABCPZ-REEL Match 100%	VIGOR I2C-COMPATIBLE, WIDE BANDWIDTH,	PI5A127UEX vs ADG795ABCPZ-REEL
PI5A124TEX-1413 Match 100%	Zetex Semiconductors (Diodes Inc.) IC SWITCH SPDT SOT23-6	PI5A127UEX vs PI5A124TEX-1413

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 162

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of PI5A127UEX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
