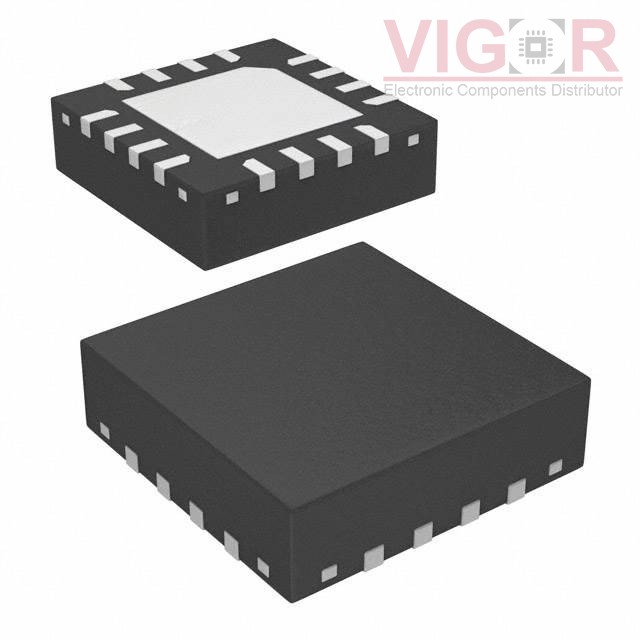

ADG1209YCPZ-REEL

Part No :: ADG1209YCPZ-REEL

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 4922997

Description: IC MULTIPLEXER DUAL 4X1 16LFCSP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

DataSheet: ADG1209YCPZ-REEL PDF

Country of origin: -

Date code: -

ADG1209YCPZ-REEL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Circuit:	SP4T
Multiplexer/Demultiplexer Circuit:	4:1
Number of Circuits:	2
On-State Resistance (Max):	200Ohm
Channel-to-Channel Matching (ΔRon):	3.5Ohm
Voltage - Supply, Single (V+):	5V ~ 16.5V
Voltage - Supply, Dual (V±):	±5V ~ 16.5V
Switch Time (Ton, Toff) (Max):	95ns, 100ns
-3db Bandwidth:	550MHz
Charge Injection:	0.4pC
Channel Capacitance (CS(off), CD(off)):	1.5pF, 4.5pF
Current - Leakage (IS(off)) (Max):	100pA
Crosstalk:	-85dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-VQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP-VQ (4x4)
