MAX4547EEE+

Part No :: MAX4547EEE+

Manufacturer: Maxim Integrated

VIGOR # :: 3989183

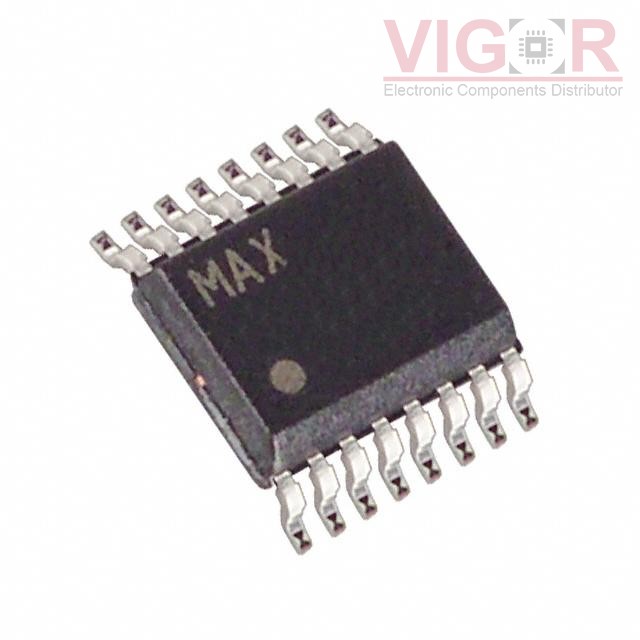

Description: IC VIDEO SWITCH DUAL SPDT 16QSOP

Catalog: Interface - Analog Switches - Special Purpose

DataSheet: MAX4547EEE+ PDF

Country of origin: -

Date code: -

MAX4547EEE+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Applications:	Video
Multiplexer/Demultiplexer Circuit:	2:1
Switch Circuit:	SPDT
Number of Channels:	2
On-State Resistance (Max):	20Ohm
Voltage - Supply, Single (V+):	2.7V ~ 12V
Voltage - Supply, Dual (V±):	±2.7V ~ 6V
-3db Bandwidth:	300MHz
Features:	Bi-Directional, Break-Before-Make, T-Switch Configuration
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:	16-QSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX4567EEE+T Match 88%	Maxim Integrated IC VIDEO SWITCH DUAL SPDT 16QSOP	MAX4547EEE+ vs MAX4567EEE+T
MAX4546EEE Match 100%	VIGOR BIDIRECTIONAL RF/VIDEO SWITCH	MAX4547EEE+ vs MAX4546EEE
MAX4567EEE+ Match 88%	Maxim Integrated IC VIDEO SWITCH DUAL SPDT 16QSOP	MAX4547EEE+ vs MAX4567EEE+
MAX4566EEE+T Match 88%	Maxim Integrated IC VIDEO SWITCH DUAL SPST 16QSOP	MAX4547EEE+ vs MAX4566EEE+T
MAX4566EEE+ Match 88%	VIGOR MAX4566 DUAL LOW-VOLTAGE, BIDIRE	MAX4547EEE+ vs MAX4566EEE+
MAX4547EEE+T Match 100%	Maxim Integrated IC VIDEO SWITCH DUAL SPDT 16QSOP	MAX4547EEE+ vs MAX4547EEE+T
