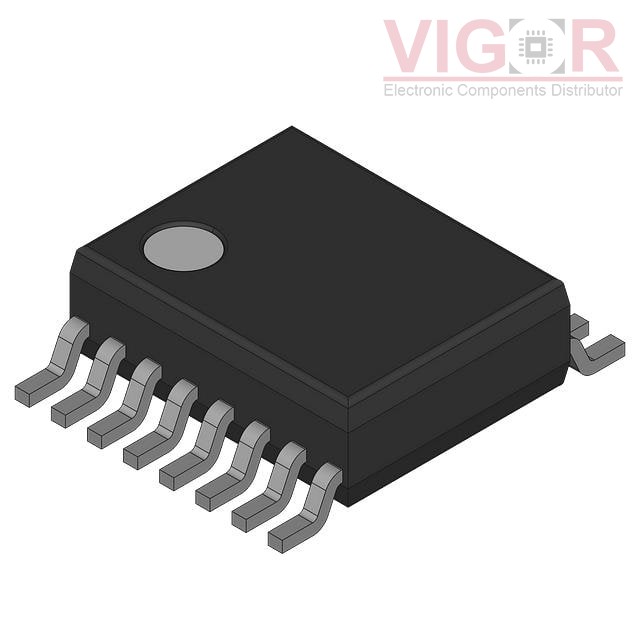

MAX4566CEE

Part No :: MAX4566CEE

Manufacturer: VIGOR

VIGOR # :: 3989619

Description: BIDIRECTIONAL RF/VIDEO SWITCH

Catalog: Interface - Analog Switches - Special Purpose

DataSheet: MAX4566CEE PDF

Country of origin: -

Date code: -

MAX4566CEE Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Applications:	Video
Multiplexer/Demultiplexer Circuit:	1:1
Switch Circuit:	SPST
Number of Channels:	2
On-State Resistance (Max):	60Ohm
Voltage - Supply, Single (V+):	2.7V ~ 12V
Voltage - Supply, Dual (V±):	±2.7V ~ 6V
-3db Bandwidth:	320MHz
Features:	Bi-Directional, Break-Before-Make, T-Switch Configuration
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:	16-QSOP
