MAX4549EAX

MAX4549EAX

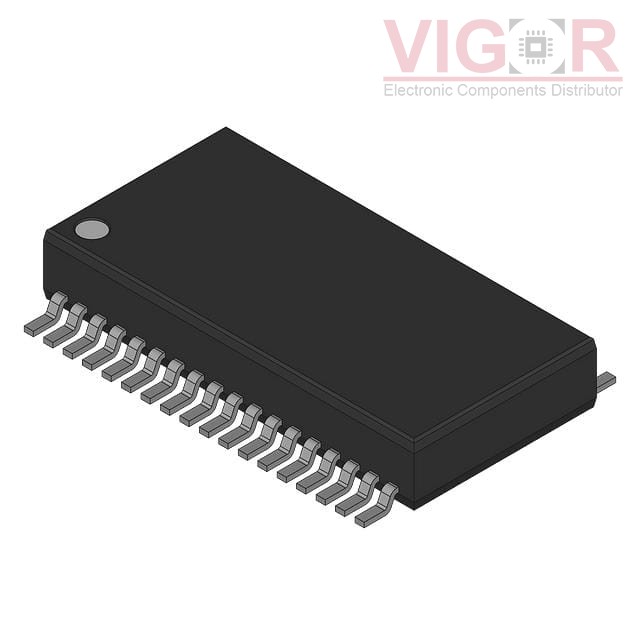

Image is for reference,
please contact us to get the real picture

Part No :

MAX4549EAX

Manufacturer
VIGOR
Description
3X2 AUDIO/VIDEO XPOINT SWITCH
Catalog
Interface - Analog Switches - Special Purpose
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
MAX4549EAX PDF
Availability
40 pieces
Unit Price
$4.20000

Current price of MAX4549EAX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MAX4549EAX Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Applications:Audio, Video
Multiplexer/Demultiplexer Circuit:3:2
Switch Circuit:-
Number of Channels:3
On-State Resistance (Max):35Ohm
Voltage - Supply, Single (V+):2.7V ~ 5.5V
Voltage - Supply, Dual (V±):-
-3db Bandwidth:250MHz
Features:Break-Before-Make, SPI
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:36-BSOP (0.295", 7.50mm Width)
Supplier Device Package:36-SSOP
