DG536DN-E3

Part No :: DG536DN-E3

Manufacturer: Vishay / Siliconix

VIGOR # :: 4956238

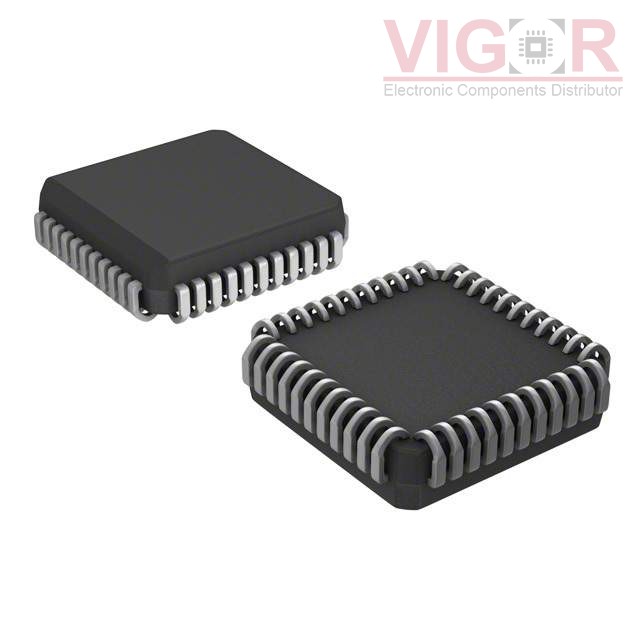

Description: IC AMP/VIDEO/MUX LP 2CH 44PLCC

Catalog: Interface - Analog Switches - Special Purpose

DataSheet: DG536DN-E3 PDF

Country of origin: -

Date code: -

DG536DN-E3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Applications:	Video
Multiplexer/Demultiplexer Circuit:	16:1
Switch Circuit:	-
Number of Channels:	1
On-State Resistance (Max):	90Ohm
Voltage - Supply, Single (V+):	10V ~ 16.5V
Voltage - Supply, Dual (V±):	-
-3db Bandwidth:	500MHz
Features:	T-Switch Configuration
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	44-LCC (J-Lead)
Supplier Device Package:	44-PLCC (16.59x16.59)

Alternative Products

Part Number	Manufacturer & Description	Compare
DG884DN-E3 Match 59%	Vishay / Siliconix IC VIDEO MULTIPLEXER 8X4 44PLCC	DG536DN-E3 vs DG884DN-E3
DG536DN Match 100%	Vishay / Siliconix IC AMP/VIDEO/MUX LP 2CH 44PLCC	DG536DN-E3 vs DG536DN
DG884DN Match 59%	Vishay / Siliconix IC VIDEO MULTIPLEXER 8X4 44PLCC	DG536DN-E3 vs DG884DN
