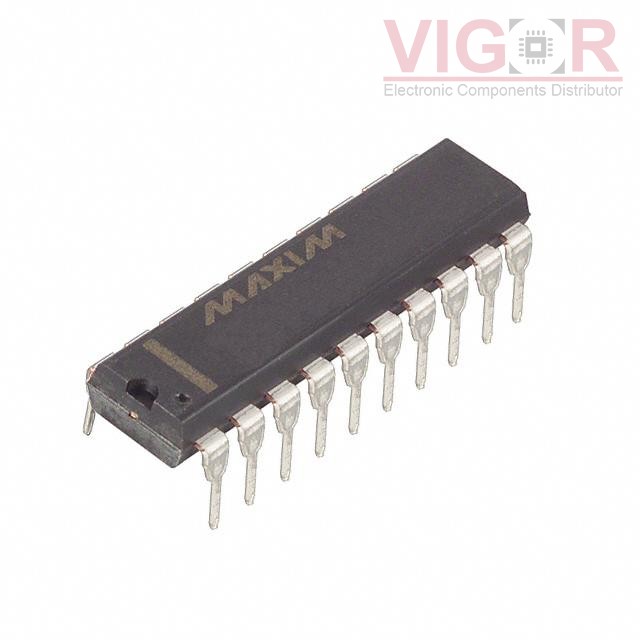

MAX4565CPP

Part No :: MAX4565CPP

Manufacturer: Maxim Integrated

VIGOR # :: 4956431

Description: IC VIDEO SWITCH QUAD SPST 20DIP

Catalog: Interface - Analog Switches - Special Purpose

DataSheet: MAX4565CPP PDF

Country of origin: -

Date code: -

MAX4565CPP Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Applications:	Video
Multiplexer/Demultiplexer Circuit:	1:1
Switch Circuit:	SPST
Number of Channels:	4
On-State Resistance (Max):	60Ohm
Voltage - Supply, Single (V+):	2.7V ~ 12V
Voltage - Supply, Dual (V±):	±2.7V ~ 6V
-3db Bandwidth:	350MHz
Features:	Bi-Directional, T-Switch Configuration
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Through Hole
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP

Alternative Products

Part Number	Manufacturer & Description	Compare
MAX4565CPP+ Match 100%	VIGOR BIDIRECTIONAL RF/VIDEO SWITCH	MAX4565CPP vs MAX4565CPP+
MAX4545EPP+ Match 88%	Maxim Integrated IC VIDEO SWITCH QUAD SPST 20DIP	MAX4565CPP vs MAX4545EPP+
MAX4545EPP Match 88%	VIGOR BIDIRECTIONAL RF/VIDEO SWITCH	MAX4565CPP vs MAX4545EPP
MAX4565EPP Match 100%	Maxim Integrated IC SW QUAD VIDEO BIDIRECT 20-DIP	MAX4565CPP vs MAX4565EPP
MAX4545CPP Match 88%	Maxim Integrated IC SW BIDIRECT RF VIDEO 20-DIP	MAX4565CPP vs MAX4545CPP
