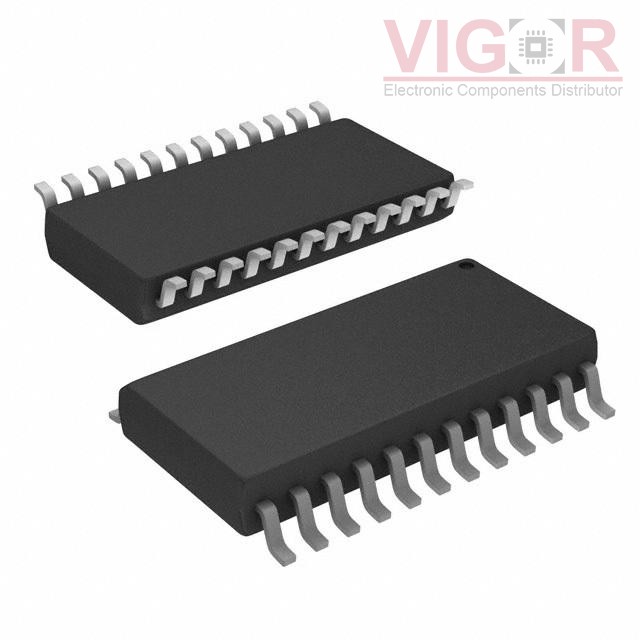

PCA9535EDWR2G

Part No :: PCA9535EDWR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3933626

Description: IC I/O Expander 16B 24SOIC

Catalog: Interface - I/O Expanders

DataSheet: PCA9535EDWR2G PDF

Country of origin: -

Date code: -

PCA9535EDWR2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of I/O:	16
Interface:	I²C, SMBus
Interrupt Output:	Yes
Features:	POR
Output Type:	Push-Pull
Current - Output Source/Sink:	10mA, 25mA
Clock Frequency:	100 kHz
Voltage - Supply:	1.65V ~ 5.5V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	24-SOIC
