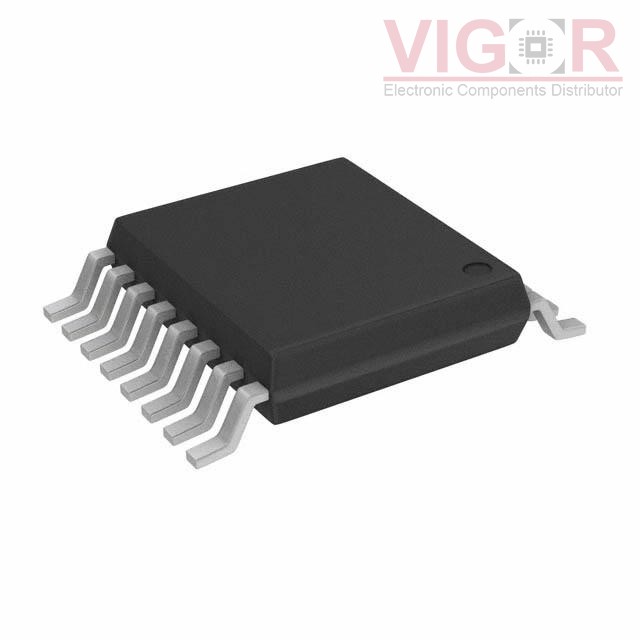

DS4520E+

Part No :: DS4520E+

Manufacturer: Maxim Integrated

VIGOR # :: 3933647

Description: IC I/O EXPANDER I2C 9B 16TSSOP

Catalog: Interface - I/O Expanders

DataSheet: DS4520E+ PDF

Country of origin: -

Date code: -

DS4520E+ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Number of I/O:	9
Interface:	I²C
Interrupt Output:	No
Features:	EEPROM, POR
Output Type:	Open Drain
Current - Output Source/Sink:	12mA
Clock Frequency:	400 kHz
Voltage - Supply:	2.7V ~ 5.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-TSSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
DS4520E+TRL Match 100%	Maxim Integrated IC I/O EXPANDER I2C 9B 16TSSOP	DS4520E+ vs DS4520E+TRL
TCA9534PWR Match 87%	Texas Instruments IC I/O EXPANDER I2C 8B 16TSSOP	DS4520E+ vs TCA9534PWR
PI4IOE5V9554LEX Match 87%	Zetex Semiconductors (Diodes Inc.) IC I/O EXPANDER 8-BIT 16TSSOP	DS4520E+ vs PI4IOE5V9554LEX
TCA9534APWR Match 87%	Texas Instruments IC I/O EXPANDER I2C 8B 16TSSOP	DS4520E+ vs TCA9534APWR
PCA8574APW,118 Match 87%	NXP Semiconductors IC I/O EXPANDER I2C 8B 16TSSOP	DS4520E+ vs PCA8574APW,118
PI4IOE5V9557LEX Match 87%	Zetex Semiconductors (Diodes Inc.) IC I/O EXPANDER 8BIT I2C 16TSSOP	DS4520E+ vs PI4IOE5V9557LEX
